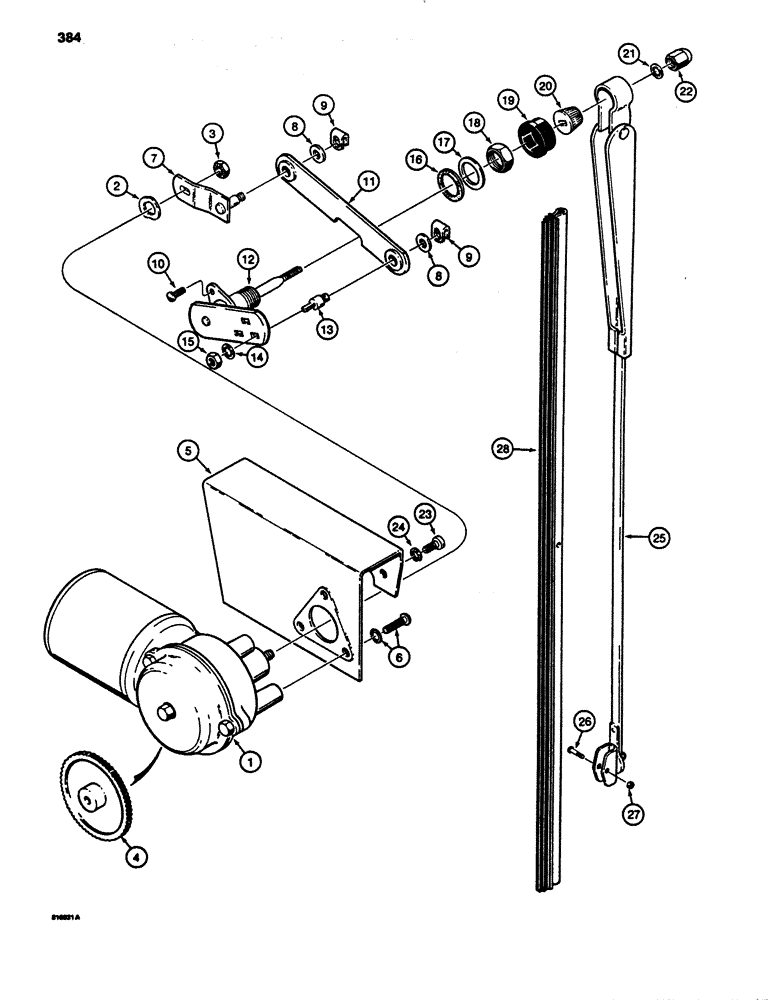

Запчасти Case 780B (384) - CAB FRONT WINDSHIELD WIPER, AMERICAN BOSCH PARTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
F96899
ELECTRIC MOTOR
MOTOR AND BRACKET ASSEMBLY - complete, front windshield wiper, 24 volt, American Bosch No. 19451-27-M024WC (parts list below) or Robert Bosch No. 9397235015 (parts list Figure 385A), Includes: Ref. 1 - 22
1шт.
F93654
WIPER MOTOR
MOTOR ASSEMBLY - windshield wiper front, or rear, order for service, Includes: Ref. 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
MOTOR - windshield wiper
1шт.
2
D71411
WASHER
- wave
1шт.
3
F44452
LOCK NUT
- hex, lock, 1/4" - 28 NF, plated
1шт.
4
N6029
GEAR
- plastic drive
1шт.
5
D72850
BRACKET
- mounting, motor
1шт.
6
D72849
SCREW
AND WASHER -, Serial Range: bracket-motor
3шт.
7
A36091
ARM
- drive
1шт.
8
A22431
WASHER
- spacer
2шт.
9
D71414
CLIP
- spring
2шт.
10
F44456
SCREW,0.19" - 32 x 3 3/4"
- pivot, Serial Range: shaft-bracket
2шт.
11
D71427
LINK,85.85mm L
- drive arm to pivot shaft
1шт.
N7274
KIT
SHAFT ASSEMBLY - pivot, Includes: Ref. 12 - 22
1шт.
12
NSS
NOT SOLD SEPARAT
SHAFT - pivot
1шт.
13
D73642
PIN
- special
1шт.
14
193-60
LOCK WASHER,Int Tooth, 1/4"
WASHER, LOCK, Int Tooth, 1/4"
1шт.
15
425-154
JAM NUT,Jam, 1/4"-28, G5
1шт.
16
N6749
WASHER
- fiber
1шт.
17
N6750
WASHER
- steel
1шт.
18
N6751
NUT
- shaft
1шт.
19
N6752
CAP
- shaft, rubber
1шт.
20
N6753
BLOCK DRIVER
DRIVER - knurled
1шт.
21
193-68
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
1шт.
22
N6754
NUT
- cap
1шт.
23
182-548
SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"
MACHINE SCREW - pan head slotted, 1/4" - 28 NF x 3/8", plated
2шт.
24
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
25
F44928
WIPER
ARM - windshield wiper, 22" (559 mm) long, Includes: Ref. 26 and 27
1шт.
26
182-567
SCREW,Sltd Pan Hd, #5-40 x 1/2"
MACHINE SCREW - pan head, No. 5 - 40 NC x 1/2", plated
1шт.
27
129-14
NUT,#5-40
1шт.
28
F43938
WIPER BLADE
BLADE - windshield wiper, 22" (559 mm) long
1шт.
Выбрано товаров: 31
