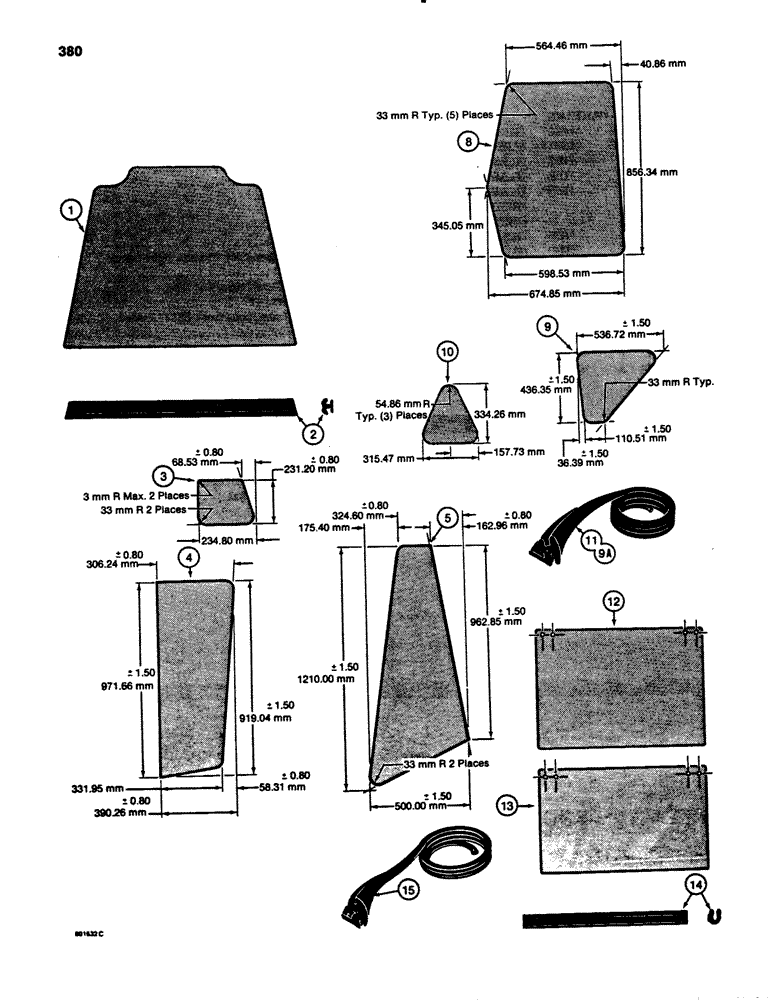

Запчасти Case 780B (380) - CAB GLASS - METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

F44623

WINDSHIELD

GLASS - windshield, upper

1шт.

2

F44621

MOLDING

SUPPORT - windshield, bottom of upper windshield

1шт.

3

REF

INSTRUCTION

GLASS - windshield, lower

2шт.

4

REF

INSTRUCTION

GLASS - side, rear

2шт.

5

REF

INSTRUCTION

GLASS - panel, next to rear window

2шт.

6

RESERVED

1шт.

7

RESERVED

1шт.

8

REF

INSTRUCTION

GLASS - side, windows

2шт.

9

REF

INSTRUCTION

GLASS - side, front lower; left-hand glass uses Ref. 15 seal, right-hand glass uses Ref. 9A seal

2шт.

9a

L107709

SEAL ASSY.

SEAL - used with Ref. 9 glass on the right-hand side, 1549 mm long

1шт.

10

REF

INSTRUCTION

GLASS - rear fenders, if used, uses seal Ref. 11

2шт.

11

REF

INSTRUCTION

SEAL - rear fender glass, if used, 1105 mm long, cut from L35717 bulk

2шт.

12

F44629

GLASS

- rear window, upper

1шт.

13

F44630

GLASS

- rear window, lower

1шт.

14

F44710

SEAL

SUPPORT - seal, lower rear window, attaches to top of glass

1шт.

15

A42677

MOLDING

SEAL - used around all glass except right-hand Ref. 9 and Refs. 10, 12, and 13, bulk roll, 1524 cm long

1шт.

L35717

GASKET

SEAL - bulk roll, 1524 cm long

1шт.
