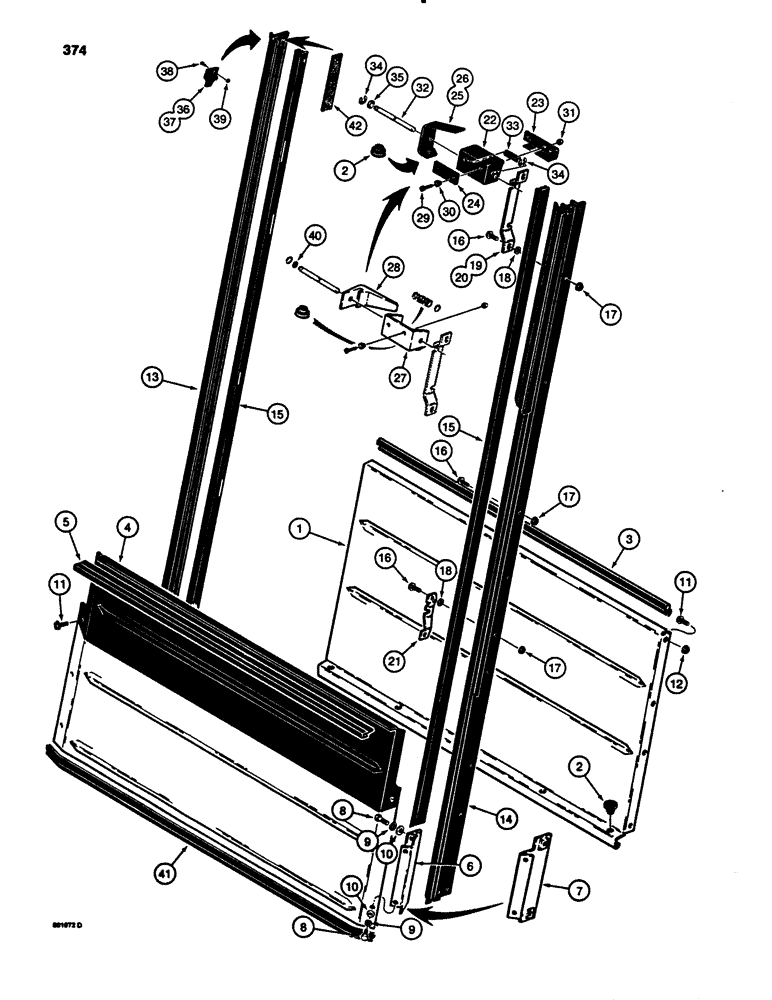

Запчасти Case 780B (374) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F42920

PANEL ASSY.

PANEL - rear window, inner

1шт.

2

L60224

BUMPER

- rubber, rear window

7шт.

3

REF

INSTRUCTION

SEAL - inner panel, rear window, 32-1/8" (816 mm) long, cut from F43086 bulk, see below

1шт.

4

F96709

PANEL

- rear window, outer, includes decals

1шт.

5

F44711

SEAL

- outer panel, rear window

1шт.

6

F96750

SUPPORT

BRACKET - support, outer panel, three-sided, no longer available, order F96836 bracket, Ref. 7

2шт.

7

F96836

BRACKET

- support, outer panel, two-sided

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

195-103

WASHER,5/16"

- flat, , plated 5/16"

8шт.

11

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

BOLT, , Replaces regular hex head bolt and lock washer used in production on some models Hex Flg, 5/16"-18 x 3/4", G5, Full Thd

6шт.

12

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex, self-locking, with flange, plated, 5/16"-18 NC, replaces other locking nuts used previously

4шт.

13

F96749

BRACKET

- mounting, left-hand

1шт.

14

F96748

BRACKET

- mounting, right-hand

1шт.

15

F44692

CHANNEL

- rear windows

2шт.

16

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Replaces any bolts and washers used previously Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

14шт.

17

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, , Replaces any other nuts used previously Flg, 1/4"-20

14шт.

18

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

19

F44830

BRACKET

- window retaining, top, left-hand

1шт.

20

F44831

BRACKET

- window retaining, top, right-hand

1шт.

21

F44702

BRACKET

- window retaining, lower

2шт.

22

F44698

LATCH

- window, use with Refs. 23 - 26, if used

4шт.

23

F45086

CHANNEL

COVER - window release spring, use with Refs. 22 and 24 - 26, if used

4шт.

24

F44707

SPACER

- window latch, use with Refs. 22, 23, 25, and 26, if used

4шт.

25

F44700

LEVER

- window latch release, left-hand, use with Refs. 22 - 24, if used

2шт.

26

F44701

LEVER

- window latch release, right-hand, use with Refs. 22 - 24, if used

2шт.

27

F45111

LATCH

BRACKET - window lift, use with Ref. 28 lever, if used

4шт.

28

F45110

LEVER

- window lift, use with Ref. 27 bracket, if used

4шт.

29

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - oval Phillips head, No. 10 - 24 NC x 3/4", plated

8шт.

30

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- black nylon

8шт.

31

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

8шт.

32

F44699

PIN

- window latch

4шт.

33

F62245

SPRING

- window release

4шт.

34

F45340

SNAP RING,#31, Ext, E-Type

Ring, Retaining, #31, Ext, E-Type

8шт.

35

F44832

SLEEVE

- window latch pin, use with Ref. 25 or 26 lever only, if used

4шт.

36

F45084

RETAINER

- window, up position, left-hand

1шт.

37

F45083

RETAINER

- window, up position, right-hand

1шт.

38

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Replaces any bolts and washers used previously Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

2шт.

39

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, , Replaces any other nuts used previously Flg, 1/4"-20

2шт.

40

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, window latch pin, if used

4шт.

41

REF

INSTRUCTION

SEAL - base of rear window frame to floor plate, 33" (838 mm) long, cut from L107724 seal, see below

1шт.

42

REF

INSTRUCTION

STRIP - foam, adheres to window channel, window retaining, 24" (600 mm) long, cut from F63332, see below

2шт.

F43086

SEAL

- bulk roll, 100 ft (3048 cm) long

1шт.

L107724

SEAL

SEAL - strip, 48-1/2" (1232 mm) long

1шт.

F63332

SEAL

STRIP - foam, 38-5/16" (973 mm) long

1шт.
