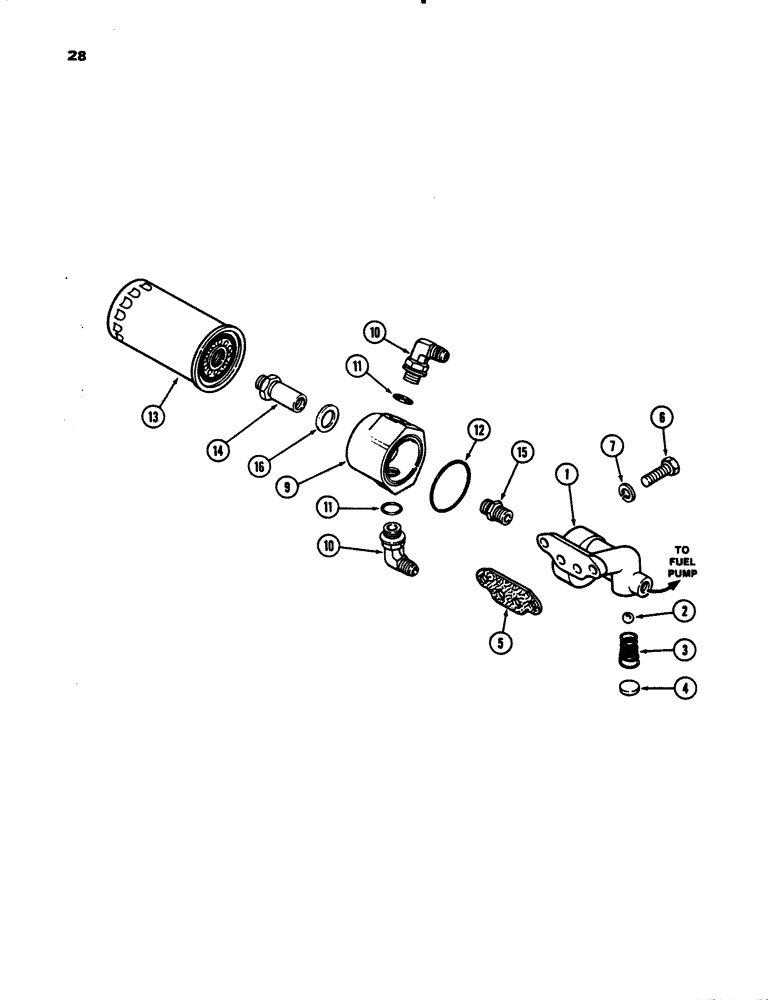

Запчасти Case 780B (028) - OIL FILTER AND FLOW DIVIDER, 336BDT DIESEL ENGINE (02) - ENGINE

1

A155956

BASE

ASSEMBLY - oil flow divider and filter (See Ref. 20), Includes: Ref. 2 - 4

1шт.

2

211-15

BALL,5/8" Dia

- relief, 5/8 inch (16 mm) diameter

1шт.

3

A155953

SPRING

- relief

1шт.

4

41-1016

PLUG,Cup, 1"

- cup type, 1 inch (25 mm)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

9

A155843

FLOW DIVIDER - oil

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, 3/4 tube, Incl. Ref. 11 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 15/32 x 7/64 inch (22 x 29 x 3 mm)

1шт.

12

A155721

OIL SEAL

- oil, flow, Serial Range: divider-base

1шт.

13

A75294

ENGINE OIL FILTER

FILTER - oil

1шт.

14

A66992

ADAPTER

- 1-12 NF external threads and

1шт.

3/4-16 inch NF internal threads

1шт.

15

A58757

ADAPTER

- 3/4-16 NF and 3/4-10 inch NF external threads

1шт.

16

195-2091

WASHER,15/16" x 1 3/8" x .219"

- 15/16 x 1-3/8 x 5/64 inch (24 x 35 x 2 mm)

1шт.
