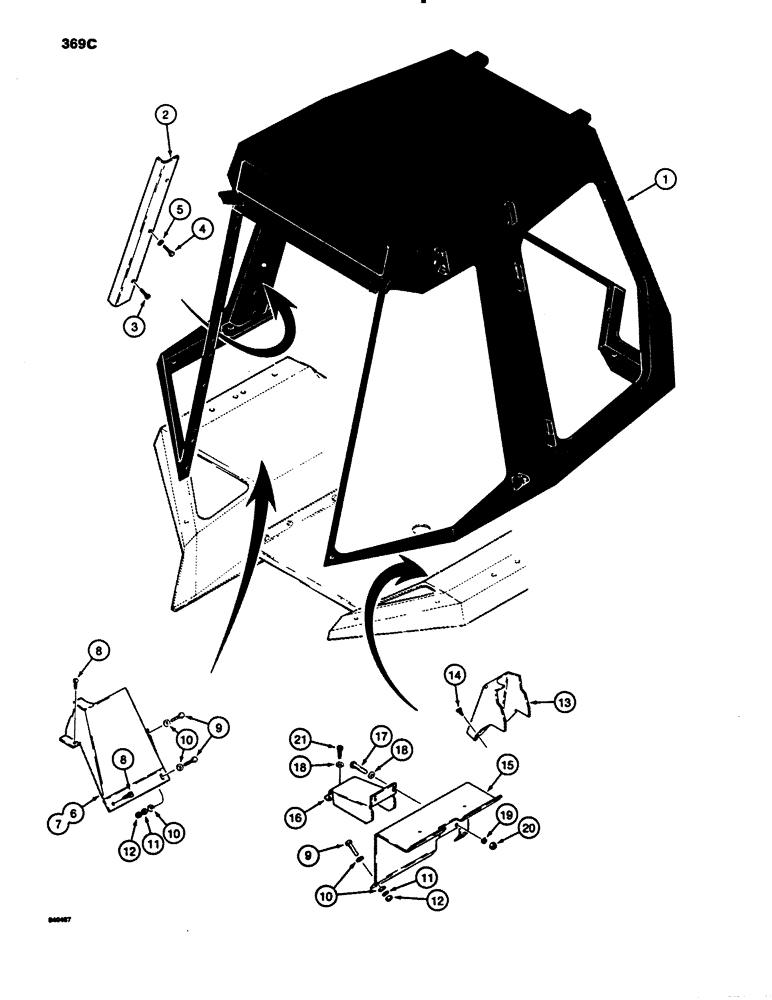

Запчасти Case 780B (369C) - HEATING AND AIR CONDITIONING LINE COVERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - cab

1шт.

2

F44766

COVER

- heating and air conditioning lines, upper

2шт.

3

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, 1/4" - 20 NC x 5/8", plated, no longer used, replace with one bolt and washer (Refs. 4 and 5) in center hole only, not required in end holes

6шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Center hole only Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

5

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, center hole only

2шт.

6

L106489

COVER

- left-hand fender, metal, no longer available, replace with either Ref. 7 cover as needed

1шт.

7

L110012

COVER

- left-hand fender, plastic, black, if used

1шт.

7

L111759

COVER ASSY

COVER - left-hand fender, plastic, brown, if used

1шт.

8

187-814

SELF-TAP SCREW,Slotted Pan Hd, #6 x 3/8"

SCREW - self-tapping, No. 6 - 20 NC x 3/8"

2шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

12шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

13

L106509

COVER ASSY

COVER - air conditioning tubes, right-hand fender, upper

1шт.

14

187-811

SCREW,Slotted Pan Hd, #6 x 5/16"

- self-tapping, No. 6 - 20 NC x 3/16"

4шт.

15

L104403

COVER ASSY

COVER - tool box mounting

1шт.

16

L104388

COVER ASSY

COVER - air conditioning tubes, right-hand fender, lower

1шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

18

195-102

WASHER,1/4"

- flat, , plated 1/4"

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

25-104

NUT,1/4"-20, G5

2шт.

21

187-1514

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW - self-tapping, 1/4" - 20 NC x 5/8"

1шт.
