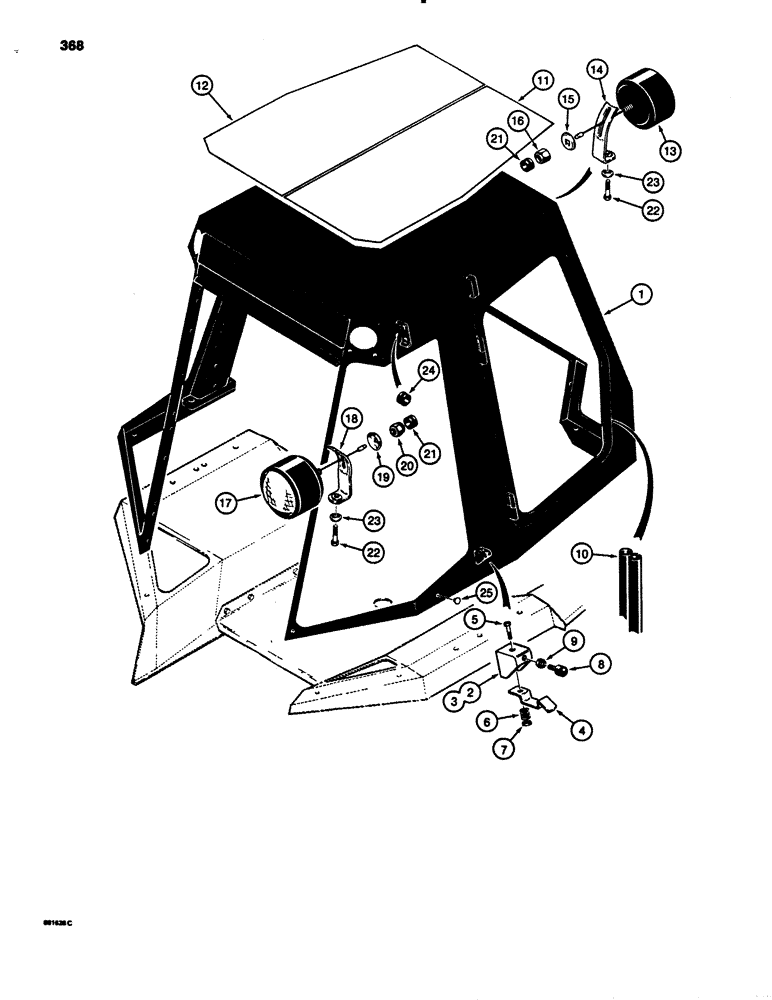

Запчасти Case 780B (368) - BLACK CAB FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, black, if used, Includes: Ref. 2 and 3

1шт.

2

F97010

BRACKET

- window latch, right-hand

1шт.

3

F97011

BRACKET

- window latch, left-hand

1шт.

4

F42772

LATCH

- window

2шт.

5

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

6

D36669

SPRING

- bracket

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

F44935

BUMPER

- window

2шт.

9

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

10

REF

INSTRUCTION

SEAL - right-hand window frame, cut to length from F43086

1шт.

11

F44914

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, right-hand

1шт.

12

F44915

DECAL

COVER - white vinyl, top of roof, heat deflection, used on models with air conditioning, left-hand

1шт.

13

F93557

INTERIOR LIGHT

LAMP ASSEMBLY - front driving, parts list Figure 102

2шт.

14

F96727

BRACKET

- lamp mounting

2шт.

15

F44807

WASHER

- special, Includes: Ref. 16

2шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

Replaces self-locking nut used 1/2"-13, G5

2шт.

17

F93558

INTERIOR LIGHT

LAMP ASSEMBLY - rear flood, parts list Figure 102

2шт.

18

F96727

BRACKET

- lamp mounting

2шт.

19

F44807

WASHER

- special, Includes: Ref. 20

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

21

353-700

BUSHING

GROMMET - front and rear lamps

4шт.

22

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex head, 5/16" - 18 NC x 1", plated

4шт.

23

F42778

WASHER

- special, 5/16"

4шт.

24

353-486

GROMMET

- side lamps, Replaces 353-704, not a sub

4шт.

25

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Frame Dome, .375" hole, Nylon

2шт.

F43086

SEAL

- bulk, 100 ft (3048 cm) long

1шт.

For additional lamps and lamp wiring, see Figure 100. For cab wiring harness, see Figure 382.
