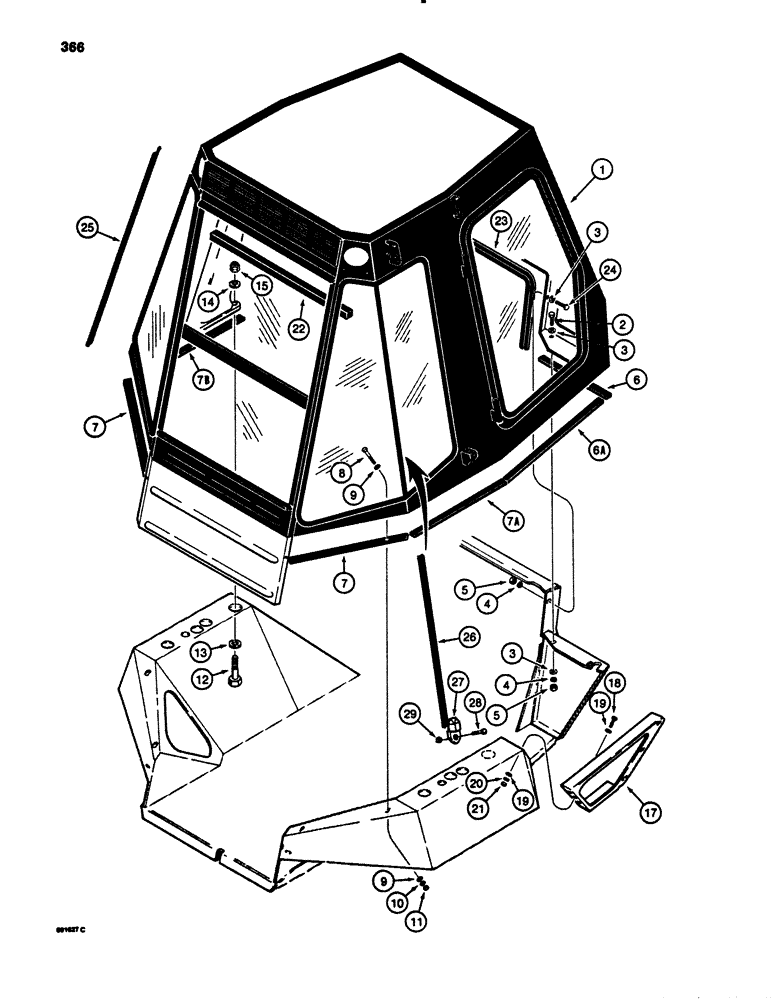

Запчасти Case 780B (366) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, black, no longer available, order brown cab, see Ref. 1A

1шт.

1a

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, brown, not shown, machinery item, see Figure 2 for ordering

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

10шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

6

L109502

STRIP

- front, sponge rubber

2шт.

6a

L109504

STRIP

- foam

1шт.

7

D90935

SEALING STRIP

SEAL - rubber, rear of cab frame

2шт.

7a

L109501

STRIP

- sponge rubber

1шт.

7b

L109503

STRIP

- sponge rubber

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

12

28-1664

BOLT,Hex, 1" - 14 x 4", Gr 8

- hex head, 1" - 14 NF x 4", grade 8

4шт.

13

D30196

WASHER

- special

4шт.

14

L107632

WASHER

- special

4шт.

15

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

4шт.

16

RESERVED

1шт.

17

D86437

PANEL ASSY.

PANEL - closure, right-hand

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

9шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

18шт.

20

92-6

LOCK WASHER,3/8"

9шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

9шт.

22

F44812

SEAL

SEAL - rear window frame, upper

1шт.

23

L107724

SEAL

SEAL - cowl, 48-1/2" (1232 mm) long

1шт.

24

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

2шт.

25

F44667

RUBBER

SUPPORT - glass, rear, left-hand

1шт.

26

F44668

SEAL

SUPPORT - glass, rear, right-hand

1шт.

27

F45183

BRACKET

RETAINER - glass support

4шт.

28

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

4шт.

29

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.
