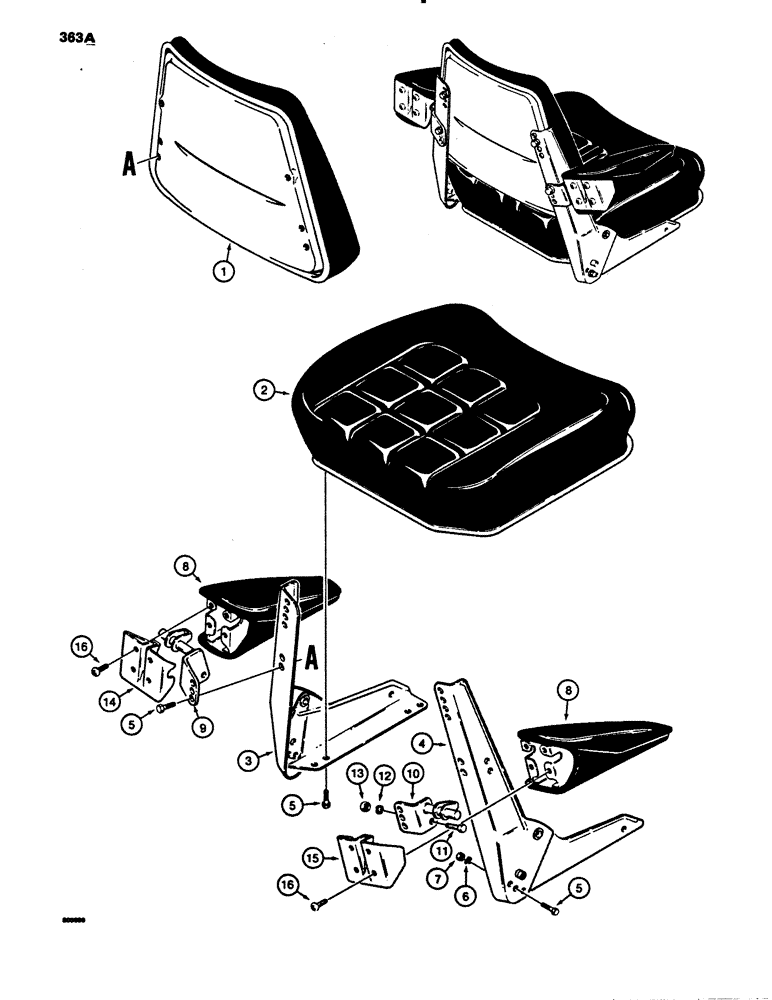

Запчасти Case 780B (363A) - D81519 SEAT AND ARMRESTS (09) - CHASSIS/ATTACHMENTS

D81519

SEAT

ASSEMBLY - operators, service replacement, black, Includes: Ref. 1 - 7

1шт.

1

D56884

BACKREST

- seat

1шт.

2

D56883

SEAT

CUSHION - seat

1шт.

3

D56885

RAIL ASSY.

FRAME - seat, left-hand

1шт.

4

D56886

RAIL ASSY.

FRAME - seat, right-hand

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

10шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

D56424

ARMREST

KIT - armrest assembly, Includes: Ref. 8 - 16

1шт.

8

D56898

ARMREST

- operators seat

2шт.

9

D56899

BRACKET

- mounting, left-hand

1шт.

10

D56900

BRACKET

- mounting, right-hand

1шт.

11

113-143

BOLT,5/16" x 5/8"

- hex head, 5/16" - 18 NC x 5/8", plated

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

D56901

BRACKET

PLATE - mounting, left-hand

1шт.

15

D56902

BRACKET

PLATE - mounting, right-hand

1шт.

16

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8"

8шт.
