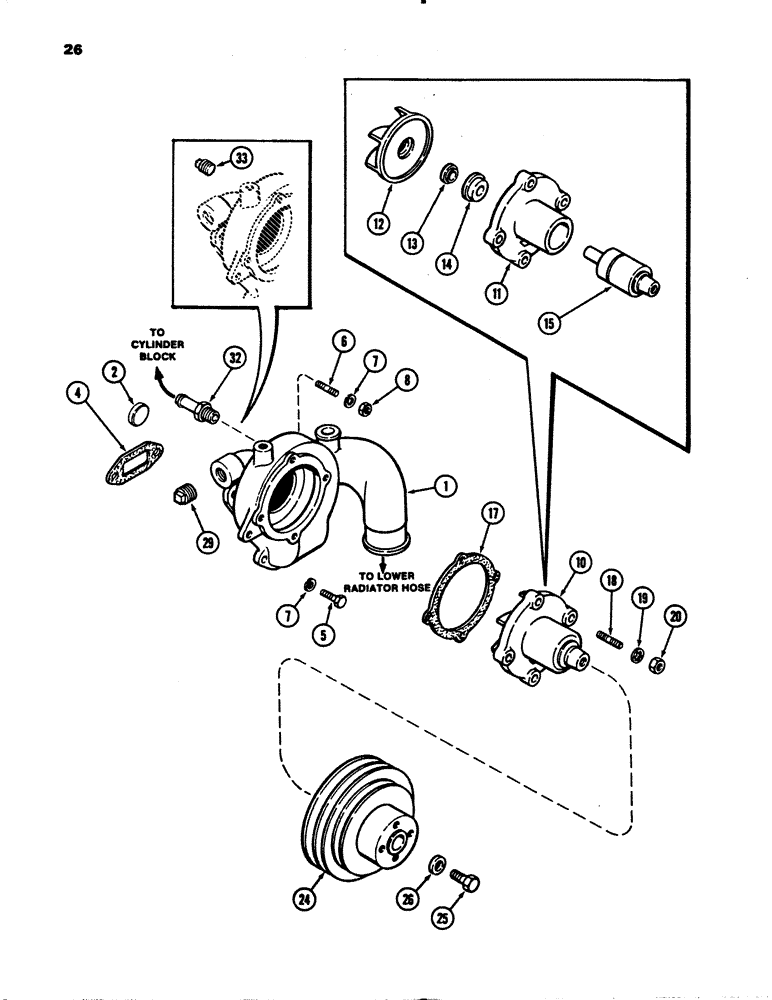

Запчасти Case 780B (026) - WATER PUMP, 336BDT DIESEL ENGINE (02) - ENGINE

1

A148968

HOUSING

BODY ASSEMBLY - water pump (Replaces A138498), Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8 inch (35 mm) diameter

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

G102128

BOLT

STUD - 3/8 NS x 3/8 NC x 1-17/32 inch

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

2шт.

10

A48369

PUMP

PUMP KIT - water, remanufactured (Includes: Ref. 17), Includes: Ref. 11 - 15

1шт.

10

A157145

PUMP, WATER

PUMP ASSEMBLY - water, new (Replaces A155180), Includes: Ref. 11 - 15

1шт.

10

199352A1

PUMP, WATER

1шт.

10

1342818C1R

REMAN-WATER PUMP

Reman For New P/N 199352A1

1шт.

10

A48335

CORE-WATER PUMP

Return Part Number

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump (Reference No. A58642)

1шт.

12

A152126

IMPELLER

IMPELLER - pump

1шт.

13

A34000

SEAL

SEAL - impeller

1шт.

14

A142499

SEAL

SEAL - pump shaft

1шт.

15

A156995

BEARING

SHAFT ASSEMBLY - pump (Replaces A155272)

1шт.

17

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

18

A166044

STUD

STUD - pump mounting, 3/8 NC x 1-7/16 inch

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8 inch NC

4шт.

24

A58650

PULLEY

PULLEY - belt

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - hex, 1/2 NF x 1-1/4 inch

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - fan hub

1шт.

29

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head pipe, 3/4 inch PT

1шт.

There used to be an elbow (221-1413), a reducer bushing (221-1092) and a water shut-off valve (A16764) used here. They are now replaced by a single plug (Ref. 29 above).

1шт.

32

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - 1/2 inch PT barb (If equipped)

1шт.

33

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head pipe, 1/2 inch PT (If equipped)

1шт.
