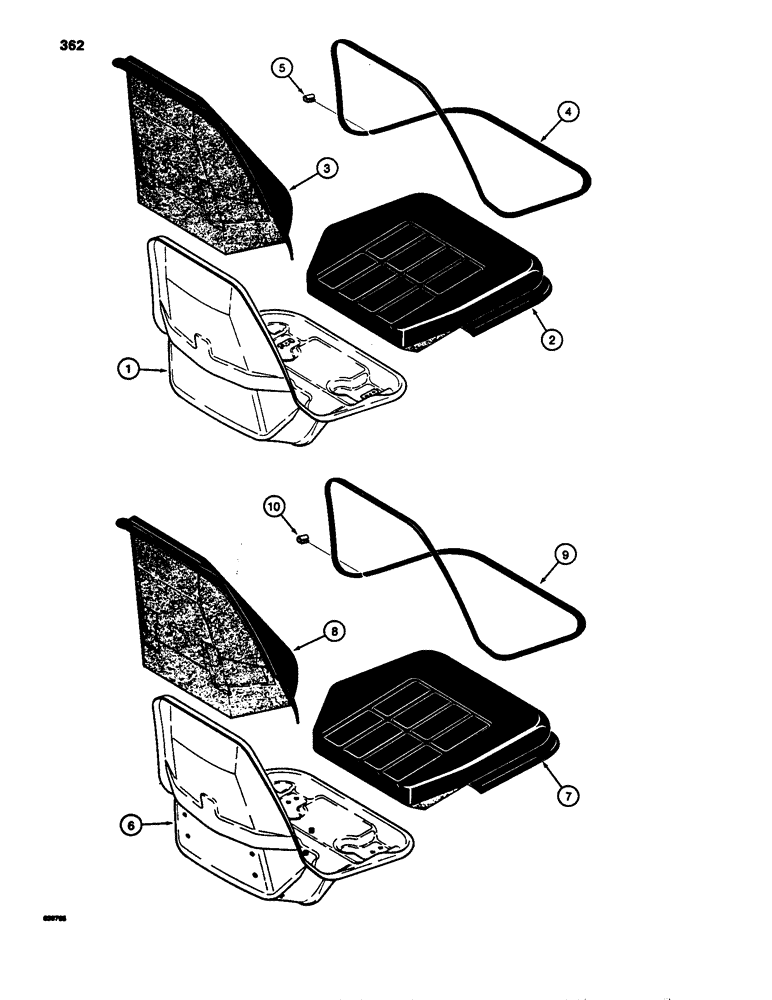

Запчасти Case 780B (362) - SEAT ASSEMBLIES, D120255 & D123196 STANDARD SEAT ASSEMBLY, D125246 SUSPENSION SEAT ASSY. (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
D120255
SEAT
ASSEMBLY - standard, black order D81519 seat for service, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
SHELL - seat
1шт.
2
N7675
CUSHION
- seat, includes N7802 clip kit, see below
1шт.
3
N7674
BACKREST
CUSHION - backrest, includes N7802 clip kit, see below
1шт.
4
NSS
NOT SOLD SEPARAT
RETAINER - strip, Serial Range: cushion-shell
1шт.
5
NSS
NOT SOLD SEPARAT
CLIP - retainer, order N7802 clip kit, see below
1шт.
D123196
SEAT ASSY.
SEAT ASSEMBLY - standard, brown, for seat support see Figure 360, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
SHELL - seat
1шт.
2
N8462
CUSHION
- seat, includes N7802 clip kit, see below
1шт.
3
N8461
CUSHION
- backrest, includes N7802 clip kit, see below
1шт.
4
NSS
NOT SOLD SEPARAT
RETAINER - strip, Serial Range: cushion-shell
1шт.
5
NSS
NOT SOLD SEPARAT
CLIP - retainer, order N7802 clip kit, see below
1шт.
D125246
SEAT
ASSEMBLY - suspension, brown, for seat support see Figure 363F, for seat adjuster assembly see Figure 364, Includes: Ref. 6 - 10
1шт.
6
NSS
NOT SOLD SEPARAT
SHELL - suspension seat
1шт.
7
N8528
CUSHION
- seat, includes N7802 clip kit, see below
1шт.
8
N8529
CUSHION
- backrest, includes N7802 clip kit, see below
1шт.
9
NSS
NOT SOLD SEPARAT
RETAINER - strip, Serial Range: cushion-shell
1шт.
10
NSS
NOT SOLD SEPARAT
CLIP - retainer, order N7802 clip kit, see below
1шт.
345-44
ADHESIVE
- pad retaining, in a can, 23 fl. ounces (680 ml), not shown
1шт.
N7802
CLIP
KIT - clip, includes Ref. 5 clip or Ref. 10 clip above plus 6 additional narrow clips
1шт.
Other seats shown on Figures 361A and 363A.
