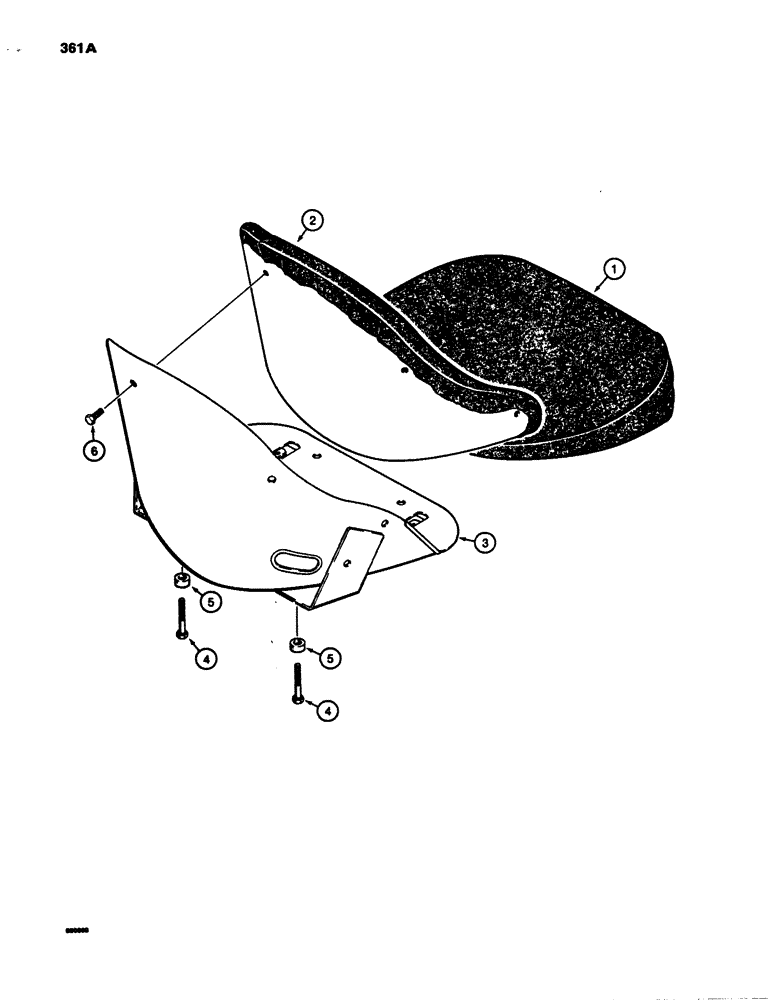

Запчасти Case 780B (361A) - D93313 SEAT (09) - CHASSIS/ATTACHMENTS

D93313

DRIVER SEAT

SEAT ASSEMBLY - operators, if used (order D81519 for service), Includes: Ref. 1 - 6

1шт.

1

D52470

CUSHION

- seat

1шт.

2

A42747

BACKREST

CUSHION - backrest

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

4

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

5

N6971

SPACER - seat mounting

2шт.

6

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

7шт.
