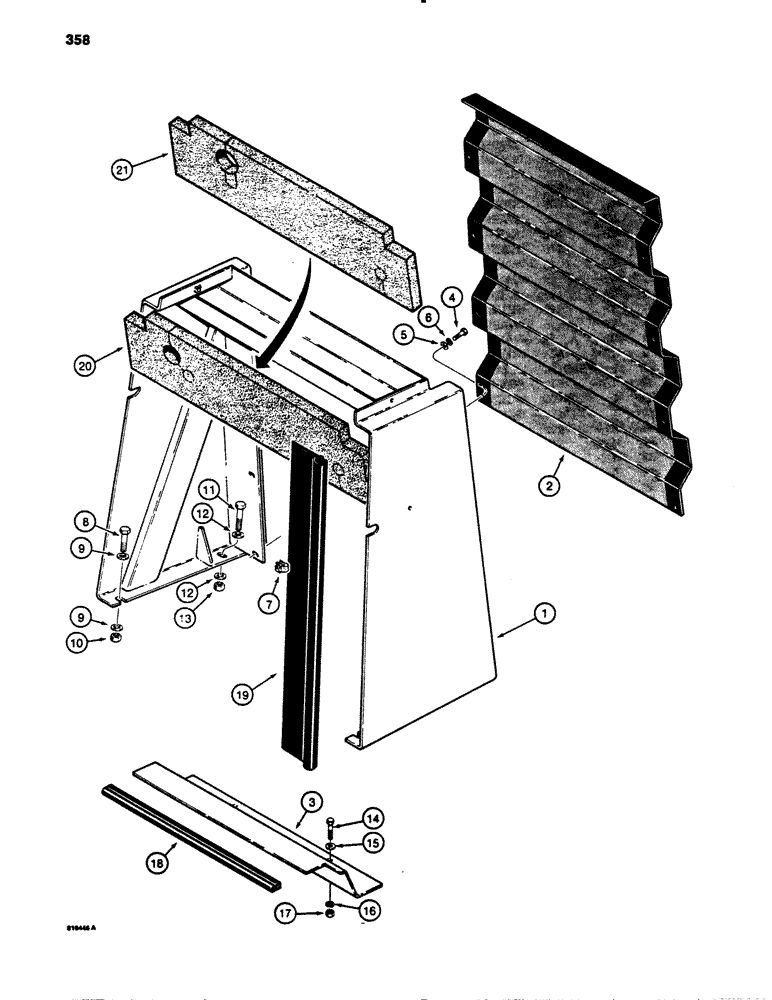

Запчасти Case 780B (358) - RADIATOR GUARD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

L102726

GUARD - radiator

1шт.

2

L102717

GRILLE ASSY

GRILLE - radiator guard

1шт.

3

L106883

BAFFLE

- lower, used before tractor SN 9146270, except not used on tractor SN 9146268

1шт.

3a

L108462

BAFFLE - lower, does not have notch out of corner, used on tractor SN 9146268, 9146270, and after, not shown

1шт.

3b

L108464

SEAL

- lower, used with L108462 baffle, not shown

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

6

92-6

LOCK WASHER,3/8"

8шт.

7

131-851

SPRING NUT,Ret, J, 3/8"-16

8шт.

8

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special

4шт.

10

25-1010

NUT,5/8"-11, G5

2шт.

11

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special

4шт.

13

25-1010

NUT,5/8"-11, G5

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

L106899

SEAL

- lower

1шт.

19

L108775

SEAL

- radiator side

1шт.

20

L108728

SEAL

- radiator top, used before tractor SN 9146270, except not used on tractor SN 9146268

1шт.

21

L108784

SEAL - radiator top, used on tractor SN 9146268, 9146270, and after

1шт.
