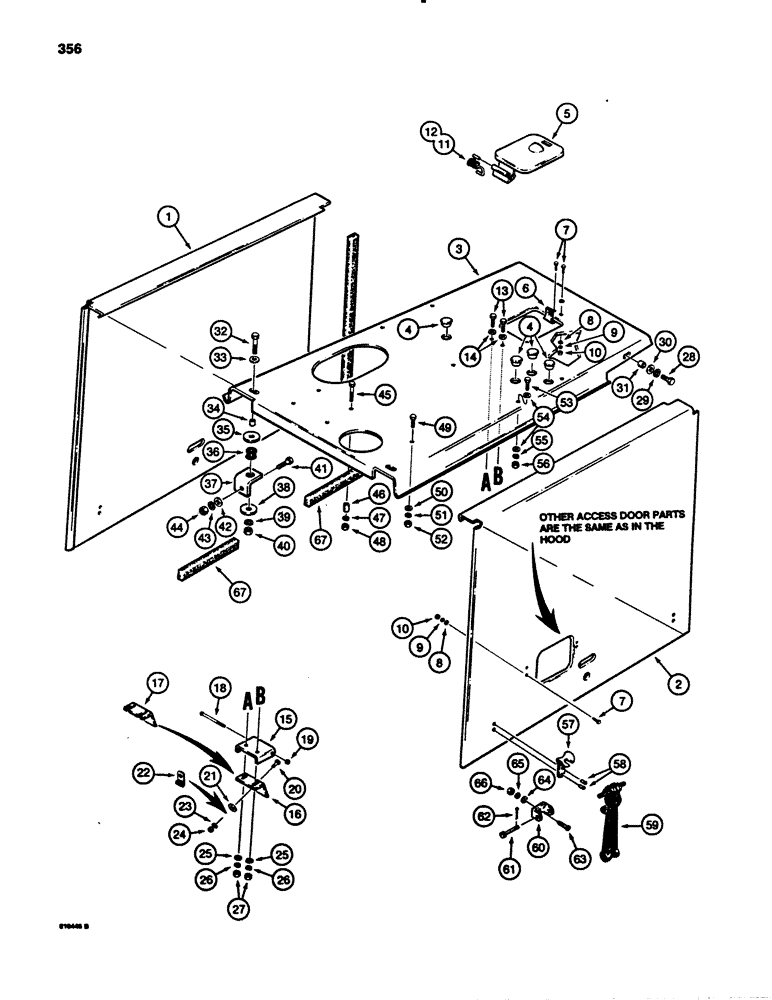

Запчасти Case 780B (356) - HOOD AND ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

L108263

PANEL ASSY.

PANEL - engine side, left-hand

1шт.

2

L108264

PANEL

- engine side, right-hand

1шт.

3

L107971

HOOD

- top panel

1шт.

4

353-414

PLUG,Dome, 1.375" Hole, Nylon

Hood top Dome, 1.375" hole, Nylon

4шт.

5

D92446

DOOR

- access

2шт.

6

L105015

BRACKET

- lock, door

2шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

8

95-4

WASHER,1/4"

- flat, 1/4"

10шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

25-104

NUT,1/4"-20, G5

6шт.

11

D82581

VALVE SPRING

SPRING - access door, used before tractor SN 9145077

2шт.

12

D121677

SPRING

- access door, used on tractor SN 9145077 and after

2шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

15

L105014

BRACKET

- hinge

2шт.

16

L106822

SUPPORT

- spring, used before tractor SN 9145077

2шт.

17

L108939

SUPPORT

- spring, used on tractor SN 9145077 and after

2шт.

18

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

19

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

21

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- spring clip, used on side panel access door

1шт.

22

T41928

CLAMP,3/16", Insul, 1/4" Bolt

- spring

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

25-104

NUT,1/4"-20, G5

2шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

31

D34242

SPACER

- hood to side panel

2шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

33

D41740

WASHER

- special

2шт.

34

D35217

BUSHING

SPACER - hood

2шт.

35

195-2036

WASHER,13/32" x 2" x .109"

- special

2шт.

36

A75993

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

- hood

2шт.

37

L105752

BRACKET - hood mounting, if used

2шт.

38

195-2036

WASHER,13/32" x 2" x .109"

- special

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

42

95-8

WASHER,1/2"

flat, if used 1/2"

2шт.

43

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

44

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

2шт.

45

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

46

A27328

SPACER

- hood

4шт.

47

92-5

LOCK WASHER,5/16"

4шт.

48

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

49

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

50

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

51

92-5

LOCK WASHER,5/16"

1шт.

52

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

54

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

55

92-5

LOCK WASHER,5/16"

1шт.

56

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

57

L105124

LATCH HOOK

BRACKET - hood panel lock

4шт.

58

151-542

RIVET,Pop, 3/16" x 3/8"

POP RIVET - 3/16" x 3/8"

8шт.

59

L105100

HOOK

- hood panel

4шт.

60

L47159

BRACKET

- anchor, if used

4шт.

61

T11232

PIN

- fastener

4шт.

62

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

4шт.

63

182-244

BOLT

MACHINE SCREW - pan head, slotted, 5/16" - 18 NC x 1", if used

4шт.

64

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", if used

4шт.

65

92-5

LOCK WASHER,5/16"

if used 5/16"

4шт.

66

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

4шт.

67

L100110

FOAM

10" piece of foam seal cut to length from L35756X

4шт.

68

L105861

FOAM

29" piece of foam seal cut to length from L35756X

2шт.
