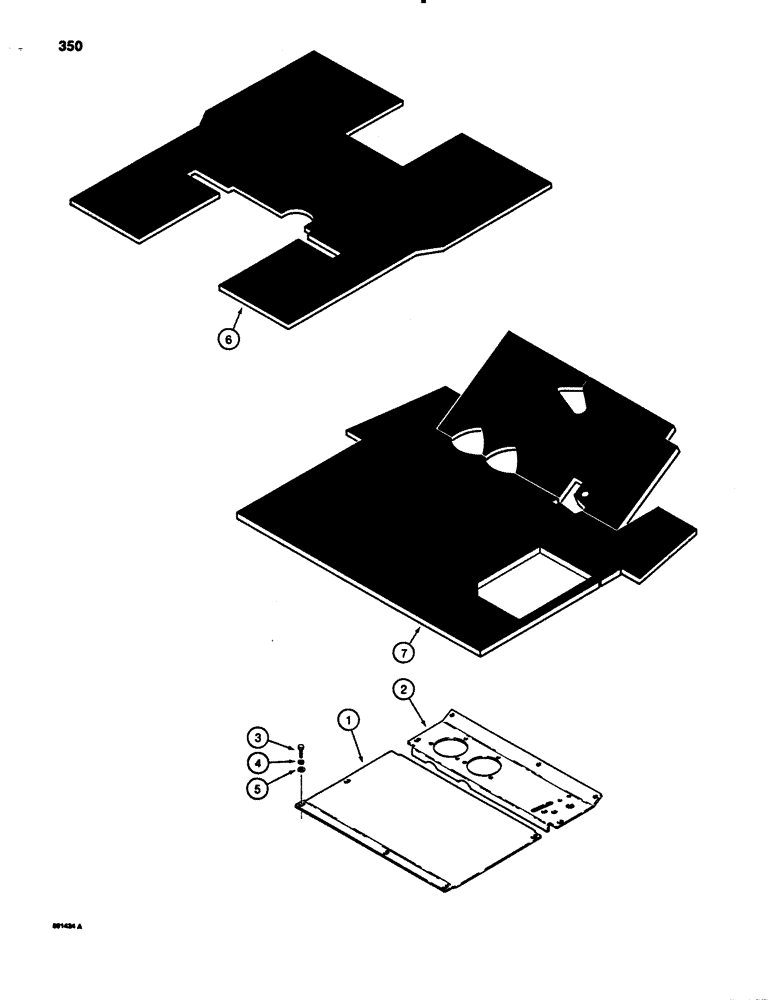

Запчасти Case 780B (350) - FLOOR PLATES AND MATS (09) - CHASSIS/ATTACHMENTS

1

L102587

PLATE ASSY.

PLATE - floor, main, removable

1шт.

2

L102588

PLATE ASSY.

PLATE - floor, small

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

4

92-6

LOCK WASHER,3/8"

7шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

7шт.

6

L103745

FLOOR MAT

FLOORMAT - rear, models without heater or air conditioning, no longer used, service with L108259 floormat

1шт.

6

L104544

FLOOR MAT

FLOORMAT - rear, models with heater and or air conditioning, no longer used, service with L108259 floormat

1шт.

6

L108259

MAT

FLOORMAT - rear

1шт.

7

L103746

FLOOR MAT

FLOORMAT - front, models without heater or air conditioning, no longer used, service with L108258 floormat

1шт.

7

L104577

FLOOR MAT

FLOORMAT - front, models with heater and or air conditioning, no longer used, service with L108258 floormat

1шт.

7

L108258

MAT

FLOORMAT - front

1шт.
