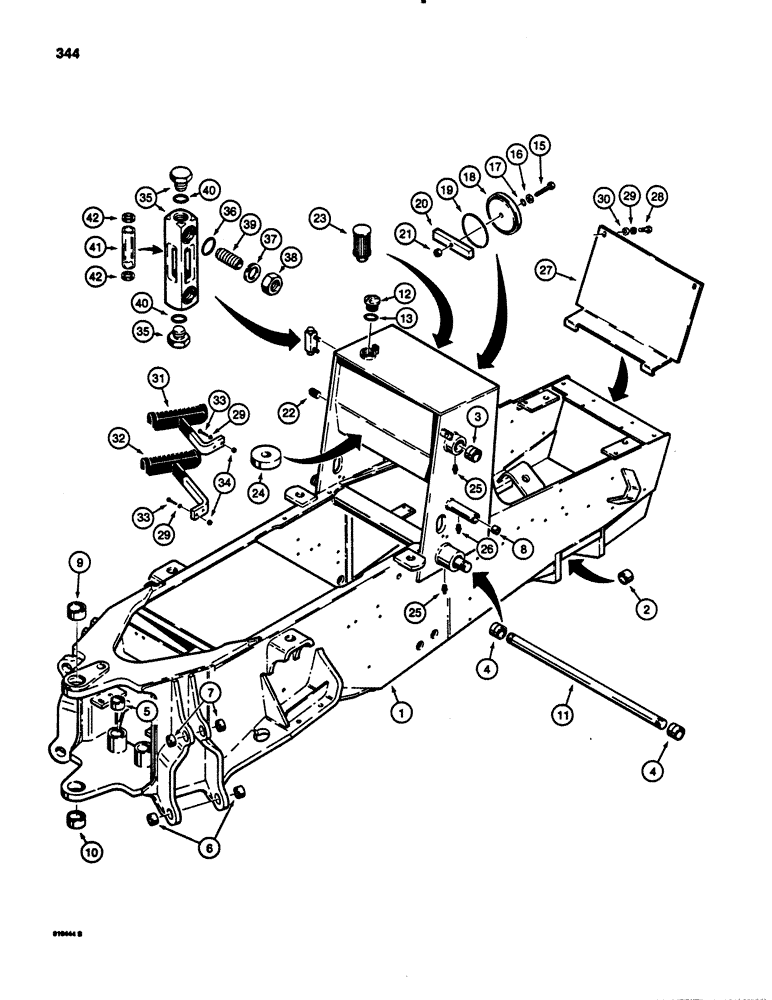

Запчасти Case 780B (344) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

L109656

FRAME

CHASSIS AND FRAME ASSEMBLY - also includes Ref. 25-35 on Figure 79, Includes: Ref. 2 - 22

1шт.

2

L11494

BUSHING

- front axle pivot

2шт.

3

L105212

BUSHING,57.35mm ID x 69.98mm OD x 46mm L

- loader lift frame pivot

2шт.

4

L105212

BUSHING,57.35mm ID x 69.98mm OD x 46mm L

- lift cylinder pivot

2шт.

5

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

6

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

7

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

8

L105125

BUSHING

- pivot, antirollback

2шт.

9

L102293

BUSHING

- upper, swing tower mounting

1шт.

10

L102294

BUSHING

- lower, swing tower mounting

1шт.

11

L101688

SHAFT

- lift cylinder mounting

1шт.

12

L100349

PLUG

CAP - filler, hydraulic reservoir

1шт.

13

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- filler cap

1шт.

14

RESERVED

1шт.

15

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex head, 1/2" - 13 NC x 4"

1шт.

16

L78045

WASHER

- special

1шт.

17

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- cover

1шт.

18

L77124

COVER ASSY

COVER - access, hydraulic filter

1шт.

19

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

SEAL - cover, hydraulic reservoir

1шт.

20

L50741

BAR

- cover retainer

1шт.

21

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

22

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - pipe, 3/4" NPT, reservoir drain, magnetic

1шт.

23

D128526

FILTER CARTRIDGE

SCREEN - suction, filter

2шт.

24

L15043

MAGNET

- hydraulic reservoir, mtal pick up, in reservoir

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

26

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

27

L105247

COVER

- front

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

29

92-8

LOCK WASHER,1/2"

6шт.

30

95-8

WASHER,1/2"

flat 1/2"

2шт.

31

L102993

STEP

- upper

1шт.

32

L102994

STEP

- lower

1шт.

33

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

34

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

L79110

GAUGE

- hydraulic oil level, Includes: Ref. 35 - 42

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - gauge, includes end plugs

1шт.

36

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- gauge

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

131-402

NUT,PAL, 1/2"-20

NUT - hex, self-locking, 1/2" - 20 NF

2шт.

39

D75821

STUD

- mounting

2шт.

40

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- end plugs to body

2шт.

41

D75820

TUBE

- sight, internal

1шт.

42

D75819

GASKET

- internal, sight tube

2шт.
