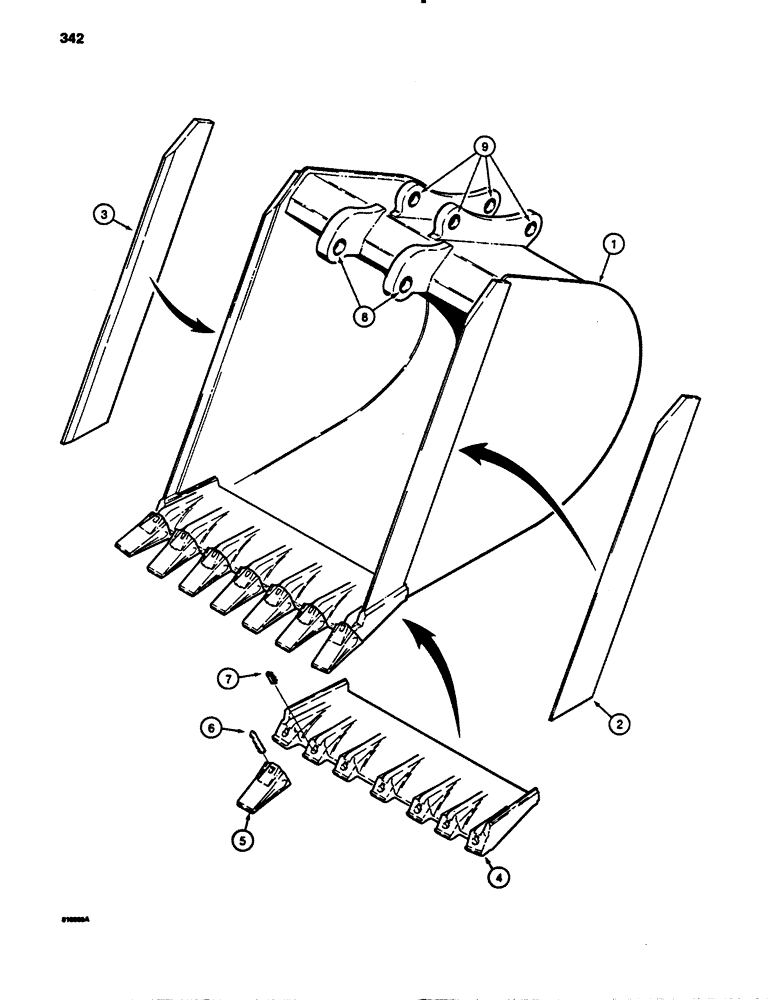

Запчасти Case 780B (342) - 36" BACKHOE TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

L102184

BUCKET - 36" (914 mm) machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 9

1шт.

2

L102172

EDGE

CUTTING EDGE - bucket, right-hand side

1шт.

3

L102173

EDGE

CUTTING EDGE - bucket, left-hand side

1шт.

L102188

CUTTING EDGE ASSEMBLY - center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CUTTING EDGE - center

1шт.

5

R38572

TOOTH

POINT - tooth

7шт.

6

R35318

PIN

- tooth

7шт.

7

R35319

LOCK ASSY

LOCK - tooth

7шт.

8

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- bucket

2шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket

4шт.
