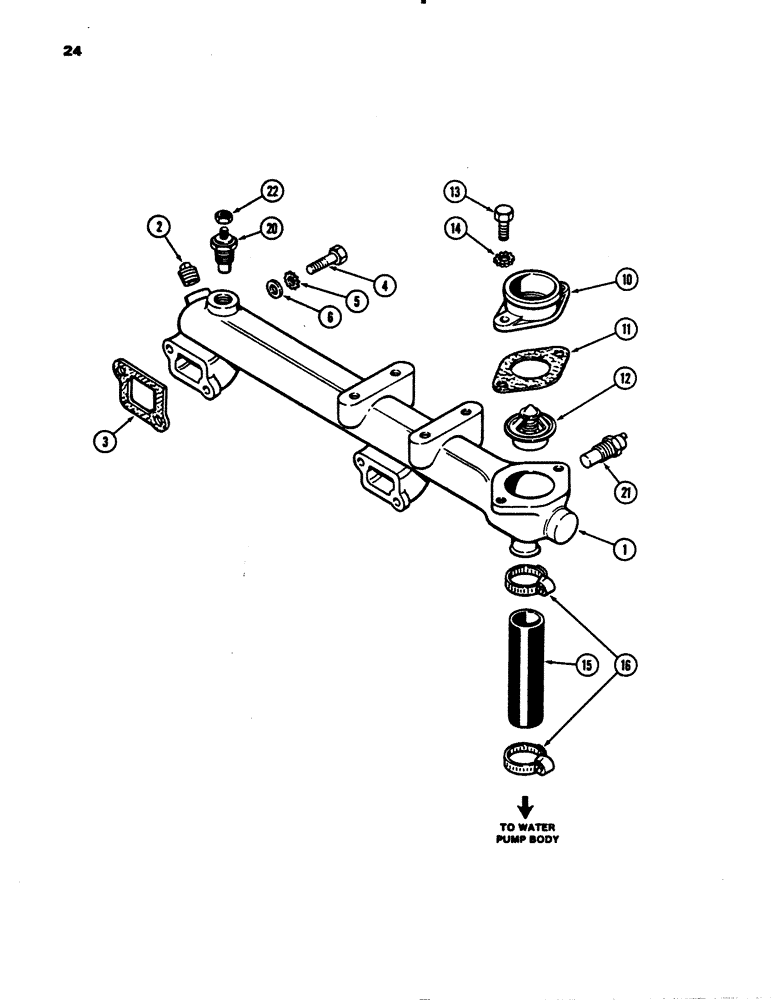

Запчасти Case 780B (024) - WATER MANIFOLD AND THERMOSTAT, 336BDT DIESEL ENGINE (02) - ENGINE

1

A141963

MANIFOLD

water

1шт.

2

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

square head pipe, 1/2 inch PT

1шт.

3

A166147

GASKET

water manifold

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

Internal shakeproof lock, 3/8 inch

4шт.

6

195-25

WASHER,3/8"

3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

10

A58736

HOUSING

thermostat

1шт.

11

A166148

GASKET

thermostat housing

1шт.

Illustration shows this as a single hole gasket. P/N A166148 is actually a double hole gasket. Proper part number for single hole gasket is G46907 (now subs to 1342775C1).

1шт.

12

A57641

THERMOSTAT

engine coolant, 180\(de F (82\(de C)

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

15

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

1-1/4 ID x 5-5/16 inch (32 x 146 mm)

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16 to 1-3/4 inch (30 to 44 mm)

2шт.

20

L104249

SWITCH

SENDING UNIT - water temperature, eng

1шт.

21

L107257

SWITCH

SENDING UNIT - temperature, eng

1шт.

22

193-1000

NUT,Keps, w/LW,#10-32

hex brass, No. 10 NF, eng temp. sending unit

1шт.
