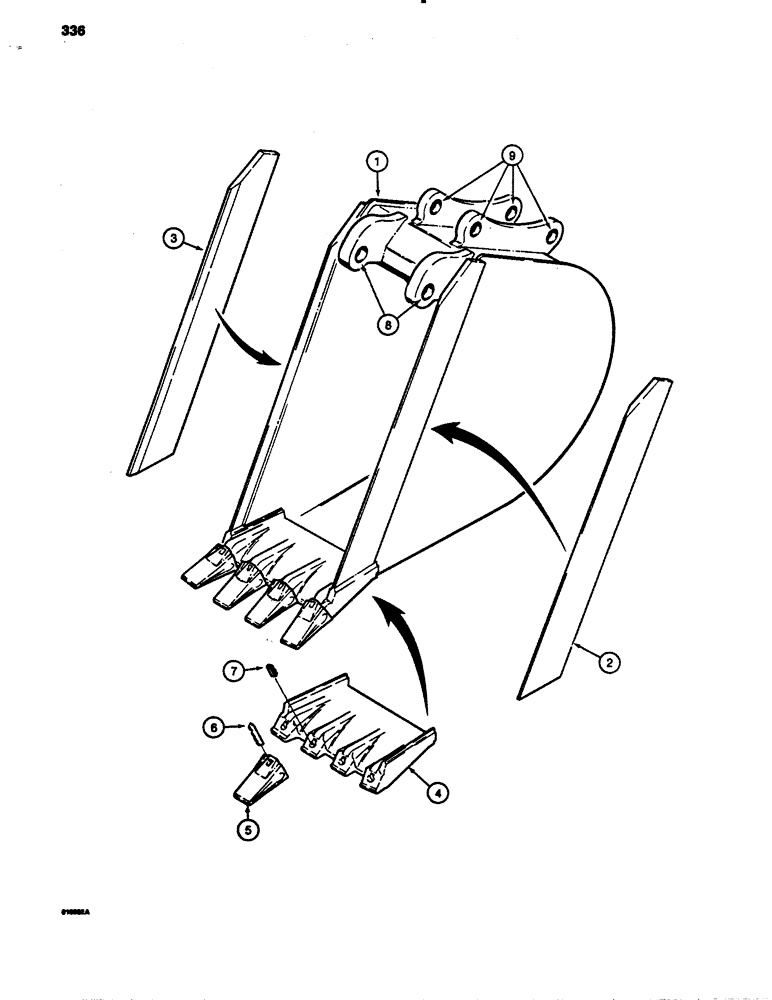

Запчасти Case 780B (336) - 18" BACKHOE TRENCHING BUCKET (09) - CHASSIS/ATTACHMENTS

1

L102219

BUCKET - 18" (457 mm) machinery item, see Figure 2 for ordering, Includes: Ref. 2 - 9

1шт.

2

L102224

CUTTING EDGE - bucket, right-hand side

1шт.

3

L102225

CUTTING EDGE - bucket, left-hand side

1шт.

L102223

CUTTING EDGE ASSEMBLY - center, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CUTTING EDGE - center

1шт.

5

R38572

TOOTH

POINT - tooth

4шт.

6

R35318

PIN

- tooth

4шт.

7

R35319

LOCK ASSY

LOCK - tooth

4шт.

8

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- bucket

2шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket

4шт.
