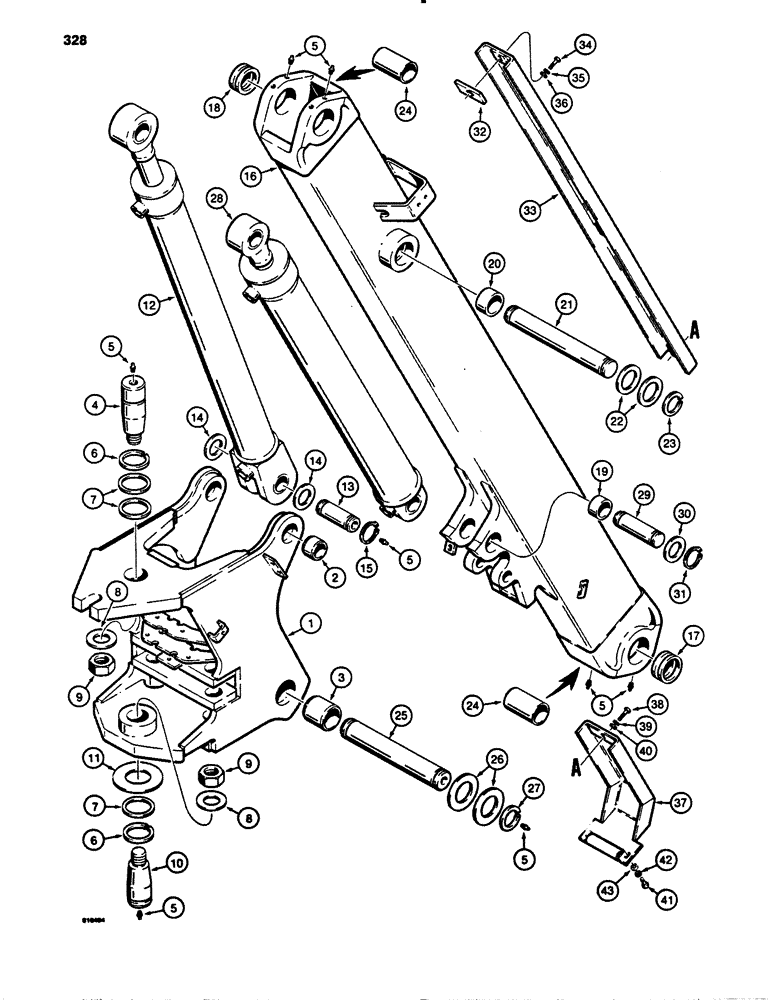

Запчасти Case 780B (328) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

L102233

BOOM

SWING TOWER - backhoe, Includes: Ref. 2 and 3

1шт.

2

D43508

BUSHING

- at boom cylinders

2шт.

3

L102262

BUSHING

- at boom

2шт.

4

L102303

PIN

- tower mounting, upper

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

8шт.

6

L16016

RING

SNAP RING - pin retaining

2шт.

See CE Service Bulletin 2/82 for use of alternate (thinner) snap ring, part number F11296, on some units. This thinner snap ring was used where there was an accumulation of tolerances. If original snap ring is .250" thickness, use standard snap ring L16016. If original snap ring is .093" thickness, use thinner snap ring F11296 (now subs to 103-11300).

1шт.

7

L45001

WASHER

- special, shim

1шт.

8

L107223

WASHER

- special, used with hex nut

2шт.

9

25-1532

JAM NUT,Jam, 2"-12, G5

- hex, 2" - 12 NF

2шт.

10

L102304

PIN

- tower mounting, lower

1шт.

11

L70236

BEARING WASHER

WASHER - special

1шт.

12

REF

INSTRUCTION

CYLINDER - boom, parts list Figure 290

2шт.

13

L105882

PIN

- boom cylinder to swing tower

2шт.

14

195-2155

WASHER,2 1/16" x 3" x .109"

- pin, boom cylinder to swing tower

1шт.

15

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

16

L108770

BOOM

- backhoe, not used with extendable dipper, Includes: Ref. 17 - 20

1шт.

17

L102178

BUSHING

- boom, tower end

2шт.

18

L106645

BUSHING

- boom, dipper end

2шт.

19

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at dipper cylinder mounting

2шт.

20

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- at boom cylinder mounting

2шт.

21

L101374

PIN

- boom, Serial Range: cylinder-boom

1шт.

22

195-2167

WASHER,2 5/8" x 4" x .109"

- pin, boom cylinder to boom

4шт.

23

L16015

RING

SNAP RING - pin retaining

2шт.

24

L107093

SPACER

- boom end casting

2шт.

25

L102561

PIN

- boom to swing tower

1шт.

26

H71514

WASHER,72mm ID x 114mm OD x 3mm Thk

- special, boom to swing tower

4шт.

27

L106635

RING

SNAP RING - pin retaining

2шт.

28

REF

INSTRUCTION

CYLINDER - dipper, parts list Figure 292

1шт.

29

L54437

AXLE PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

30

195-2155

WASHER,2 1/16" x 3" x .109"

- special, dipper cylinder to boom

2шт.

31

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

32

L103660

BLOCK

- cover, hose protector

1шт.

33

L103750

SHIELD

COVER - hose protector

1шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

35

92-8

LOCK WASHER,1/2"

2шт.

36

95-8

WASHER,1/2"

flat 1/2"

2шт.

37

L107092

GUARD

- boom end, lower, hose protector

1шт.

38

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

39

92-8

LOCK WASHER,1/2"

1шт.

40

95-8

WASHER,1/2"

flat 1/2"

1шт.

41

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

42

92-8

LOCK WASHER,1/2"

2шт.

43

95-8

WASHER,1/2"

flat 1/2"

2шт.
