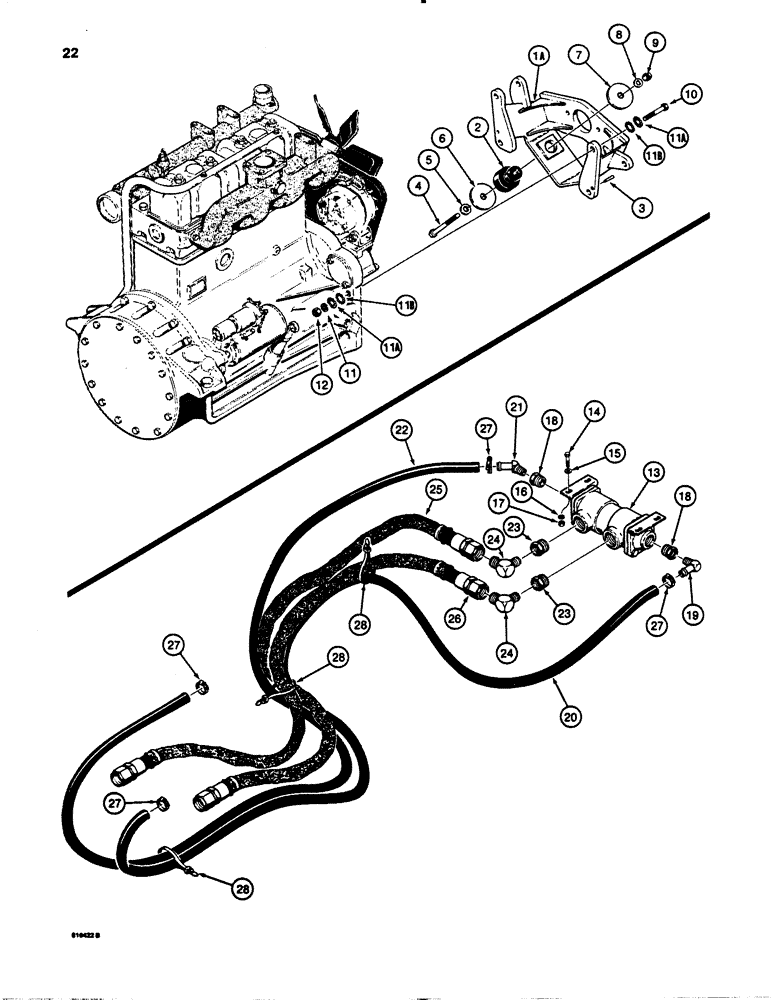

Запчасти Case 780B (022) - ENGINE MOUNTING AND OIL COOLING, OIL COOLER (02) - ENGINE

1

L107554

BRACKET

- engine mounting, not shown, has hole for old type ground cable, no longer available, order Ref. 1A. Also order (1) A165027 cable, and (1) L108391 wire from Figure 86

1шт.

1a

L108564

BRACKET

- engine mounting, Includes: Ref. 2

1шт.

2

A19066

MOUNTING PARTS

INSULATOR - rubber mount

2шт.

3

139-64

PIN,1/8" x 1 1/2", Tapered

- taper - No. 5 x 1-1/2"

2шт.

4

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex head, 3/4" - 10 NC x 4-1/2"

2шт.

5

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

- special

2шт.

6

L100884

WASHER

- flat, 4-1/2" OD, bottom, special

2шт.

7

A19068

WASHER

- flat, 3/4", top, special

2шт.

8

L79179

WASHER

- flat, 3/4", special

2шт.

9

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

10

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

4шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

11a

195-45

WASHER,3/4"

- internal-external tooth lock, 3/4"

8шт.

11b

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

8шт.

12

25-1012

NUT,3/4"-10, G5

4шт.

13

L105907

COOLER

- engine oil

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

221-68

REDUCER - bushing, 1-1/4" x 1/2"

2шт.

19

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degree

1шт.

20

L59195

HOSE

- block outlet to cooler, 55" (1397 mm) long

1шт.

21

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

22

L106464

HOSE

- cooler to radiator, 32" (813 mm) long

1шт.

23

221-74

REDUCER - bushing, 1-1/2" x 3/4"

2шт.

24

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 3/4" NPT to 1-1/16"

2шт.

25

L105382

HOSE ASSY.

HOSE - drive to cooler, 41" (1041 mm) long

1шт.

26

L105381

HOSE ASSY.

HOSE - cooler to drive, 37" (940 mm) long

1шт.

27

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, (Replaces 214-254, 214-253) #10, 0.56/1.06 Type F Worm

4шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" pipe, water pump inlet, not shown

1шт.
