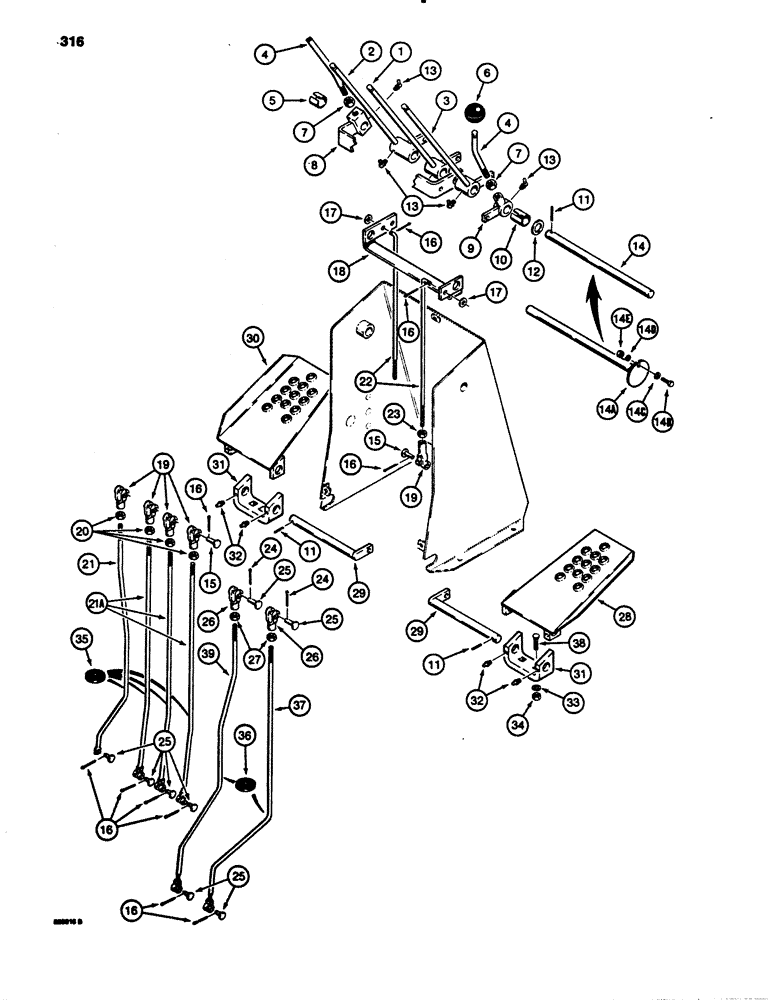

Запчасти Case 780B (316) - BACKHOE CONTROLS, MODELS WITH FOOT SWING (09) - CHASSIS/ATTACHMENTS

1

L105984

LEVER

- dipper

1шт.

2

L105985

LEVER

- bucket

1шт.

3

L105983

LEVER

- boom

1шт.

4

L108004

LEVER

- stabilizer, rod control

2шт.

5

D88212

BUSHING

SPACER - shaft, short

1шт.

6

L54563

KNOB

- levers

5шт.

7

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 13 NC

2шт.

8

D92993

BRACKET

LEVER - stabilizer, left-hand

1шт.

9

D92995

LEVER

- stabilizer, right-hand

1шт.

10

D88213

SPACER

- shaft, long

1шт.

11

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2-3шт.

12

A27812

CIRCLIP,#87, .668" Dia, E-Type

WASHER - flat, 3/4", special

3шт.

13

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree

5шт.

14

D79526

ROD

SHAFT - lever mounting, used with D84083 control tower

1шт.

14a

D123224

SHAFT

- lever mounting, used with D123189 control tower, does not uses roll pin

1шт.

14b

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Used with D123224 shaft Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

14c

95-4

WASHER,1/4"

- flat, , used with D123224 shaft 1/4"

1шт.

14d

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with D123224 shaft 1/4"

1шт.

14e

25-104

NUT,1/4"-20, G5

Used with D123224 shaft 1/4"-20, G5

1шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

10шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

14шт.

17

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

18

D86082

BRACKET

- swing

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8"

6шт.

20

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 24 NF

4шт.

21

L104125

ROD ASSY.

ROD - valve to swing bracket

1шт.

Print indicates that this part has clevised end similar to the rest of the control rods in illustration.

1шт.

21a

L104123

ROD ASSY.

ROD - backhoe levers

3шт.

22

D81905

ROD

- swing, Serial Range: pedal-bracket

2шт.

23

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 24 NF

2шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

25

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

26

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16"

2шт.

27

25-155

JAM NUT,Jam, 5/16"-24, G5

JAM NUT - hex, 5/16" - 24 NF

2шт.

28

D87886

PEDAL

- right-hand swing

1шт.

29

D89317

SHAFT

- swing pedal

2шт.

30

D87888

PEDAL

- left-hand swing

1шт.

31

D92817

BRACKET

- swing pedal

2шт.

32

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

35

L109751

SEAL

SEAL - control rod, black

4шт.

36

L109752

SEAL

SEAL - control rod, red

2шт.

37

L102895

ROD ASSY.

ROD - stabilizer, right-hand

1шт.

38

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - round head, 3/8" - 16 NC x 1-1/4"

4шт.

39

L102897

ROD ASSY.

ROD - stabilizer, left-hand

1шт.
