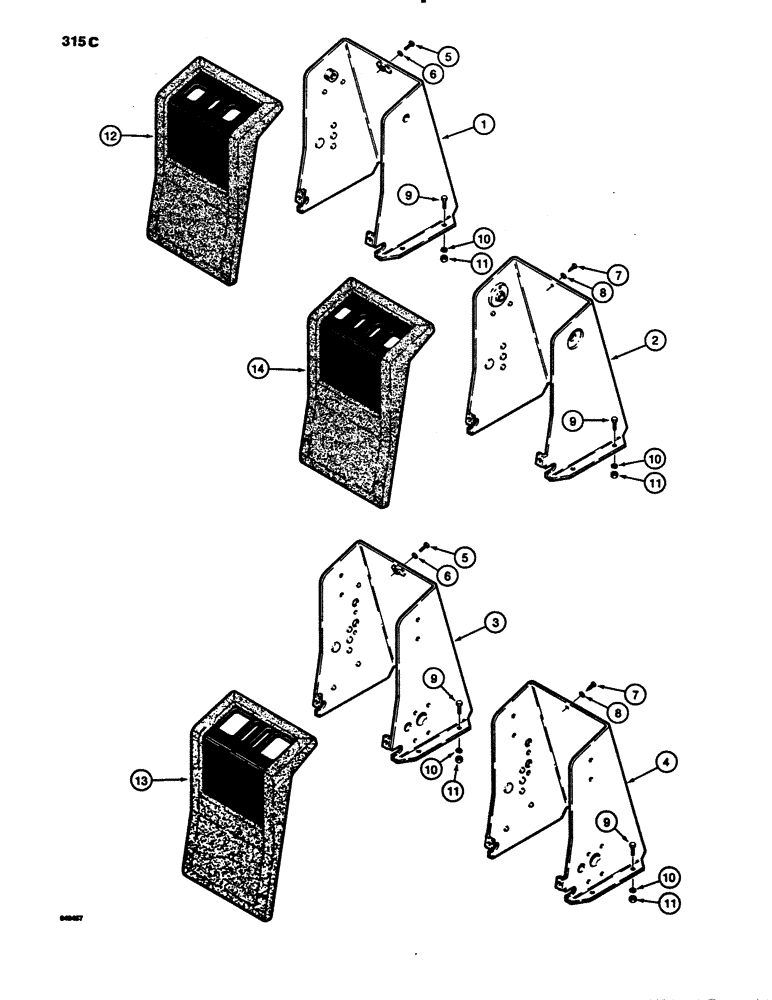

Запчасти Case 780B (315C) - BACKHOE CONTROL TOWERS AND COVERS (09) - CHASSIS/ATTACHMENTS

1

D84083

SPARE PART

CONTROL TOWER - backhoe, used with foot swing, if used

1шт.

2

D123189

CONTROL BLOCK

CONTROL TOWER - backhoe, used with foot swing, if used

1шт.

3

L105737

SUPPORT

CONTROL TOWER - backhoe, used with hand swing, if used

1шт.

4

L111602

BRACKET

CONTROL TOWER - backhoe, used with hand swing, if used

1шт.

5

164-531

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

SCREW - button head, 1/4" - 20 NC x 3/4", used with D84083 and L105737 control towers

1шт.

6

195-133

WASHER,5/16" x 3/4" x .065"

- special, used with D84083 and L105737 control towers

3шт.

7

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex head, self-tapping, 1/4" - 20 NC x 3/4", used with D123189 and L111602 control towers

3шт.

8

95-4

WASHER,1/4"

- flat, , used with D123189 and L111602 control towers 1/4"

3шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

12

D92397

COVER ASSY

COVER - control tower, used on models with foot swing, without extendable dipper, black, if used, includes decals, see Figure 415

1шт.

12

D124081

COVER ASSY

COVER - control tower, used on models with foot swing, without extendable dipper, brown, if used, includes decals, see Figure 415D

1шт.

13

D92445

COVER

- control tower, used on models with hand swing, black, if used, includes decals, see Figure 415

1шт.

13

D124080

COVER ASSY

COVER - control tower, used on models with hand swing, brown, if used, includes decals, see Figure 415D

1шт.

14

D92409

COVER

- control, tower, used on models with foot swing and extendable dipper, black, if used, includes decals, see Figure 415

1шт.

14

D124082

COVER

- control tower, used on models with foot swing and extendable dipper, brown, if used, includes decals, see Figure 415D

1шт.
