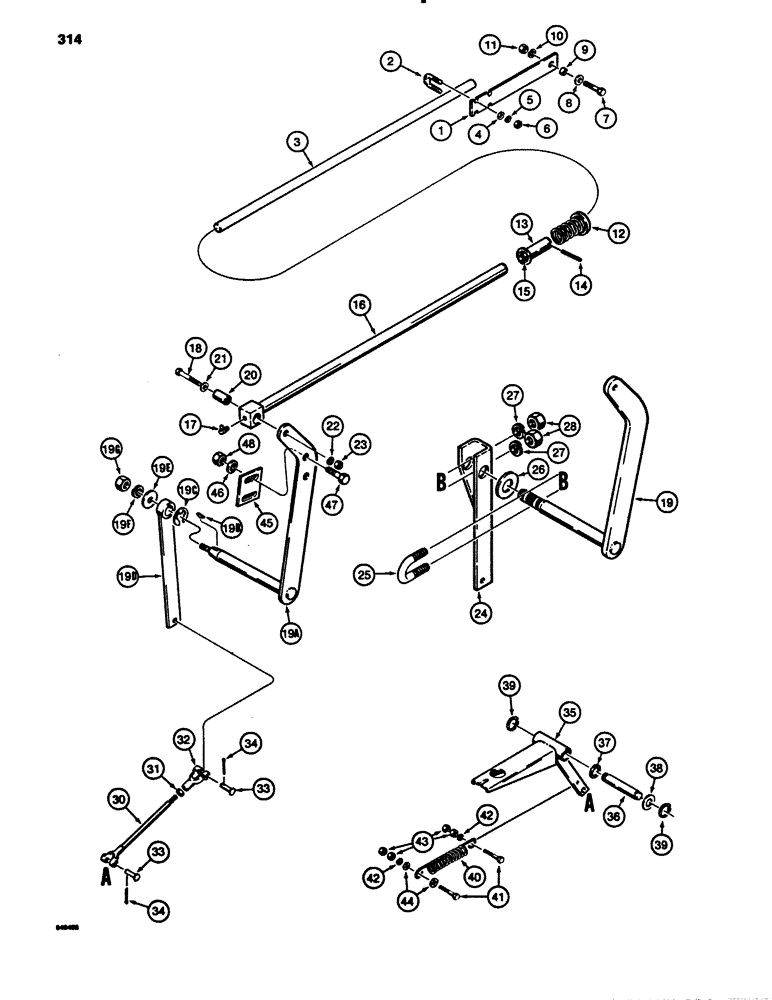

Запчасти Case 780B (314) - LOADER CONTROL, ANTIROLLBACK PARTS (09) - CHASSIS/ATTACHMENTS

1

L104091

PLATE

-, Serial Range: rod-bellcrank

1шт.

2

L78947

U-BOLT

-, Serial Range: rod-plate

2шт.

3

L108435

ROD

- antirollback

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

7

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

8

95-8

WASHER,1/2"

flat 1/2"

1шт.

9

L57298

BUSHING

- pivot

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

12

T51274

VALVE SPRING

SPRING - antirollback control

1шт.

13

L70294

SLEEVE CYLINDER

SLEEVE - spring

1шт.

14

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

15

195-2122

WASHER,1 5/16" x 1 3/4" x .065"

- special

5шт.

16

L104093

TUBE

- antirollback

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

1шт.

19

L109177

ARM ASSY.

ARM - antirollback

1шт.

19a

L108431

ARM

- antirollback, no longer available, for service order (1) L109175 link, (1) L109177 arm, and the correct mounting hardware (ref. nos. 25-28)

1шт.

19b

126-67

WOODRUFF KEY,3/8" x 1

KEY - 3/8" - 1", used with L108431 arm

1шт.

19c

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , used with L108431 arm #X137, 1.268" Dia, E-Type

1шт.

19d

L103316

PIVOT ASSY.

LINK - pivot, no longer available, for service order (1) L109175 link, (1) L109177 arm, and the correct mounting hardware (ref. nos. 25-28)

1шт.

19e

D35009

WASHER

- special, used with L108431 arm

1шт.

19g

25-1010

NUT,5/8"-11, G5

Used with L108431 arm 5/8"-11, G5

1шт.

20

L108369

BUSHING

SPACER - antirollback

1шт.

21

95-8

WASHER,1/2"

flat 1/2"

1шт.

22

92-8

LOCK WASHER,1/2"

1шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

24

L109175

PIVOT

LINK - pivot

1шт.

25

L109355

BOLT

U-BOLT - pivot link

1шт.

26

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4"

3шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

28

25-1012

NUT,3/4"-10, G5

2шт.

29

RESERVED

1шт.

30

L103591

ROD

LINK - connecting

1шт.

31

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, 1/2" - 13 NC

1шт.

32

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end, 1/2"

1шт.

33

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, 1/2"

2шт.

34

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

35

L103614

DIPPER

BELLCRANK - anti-rollback

1шт.

36

D25984

PIN

- pivot

1шт.

37

L108524

RING

WASHER - spacing, special

1шт.

38

195-53

WASHER,1" x 2" x .134"

- special

1шт.

39

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- pivot pin

2шт.

40

D129921

SPRING

- bellcrank

1шт.

41

114-127

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

- hex head, 5/16" - 24 NF x 1-3/4"

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

44

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

45

L108429

PLATE - stop, used with L108431 arm

1шт.

46

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special, used with L108431 arm

2шт.

47

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Used with L108431 arm Hex, 5/8"-11 x 2", G5

2шт.

48

25-1010

NUT,5/8"-11, G5

Used with L108431 arm 5/8"-11, G5

2шт.
