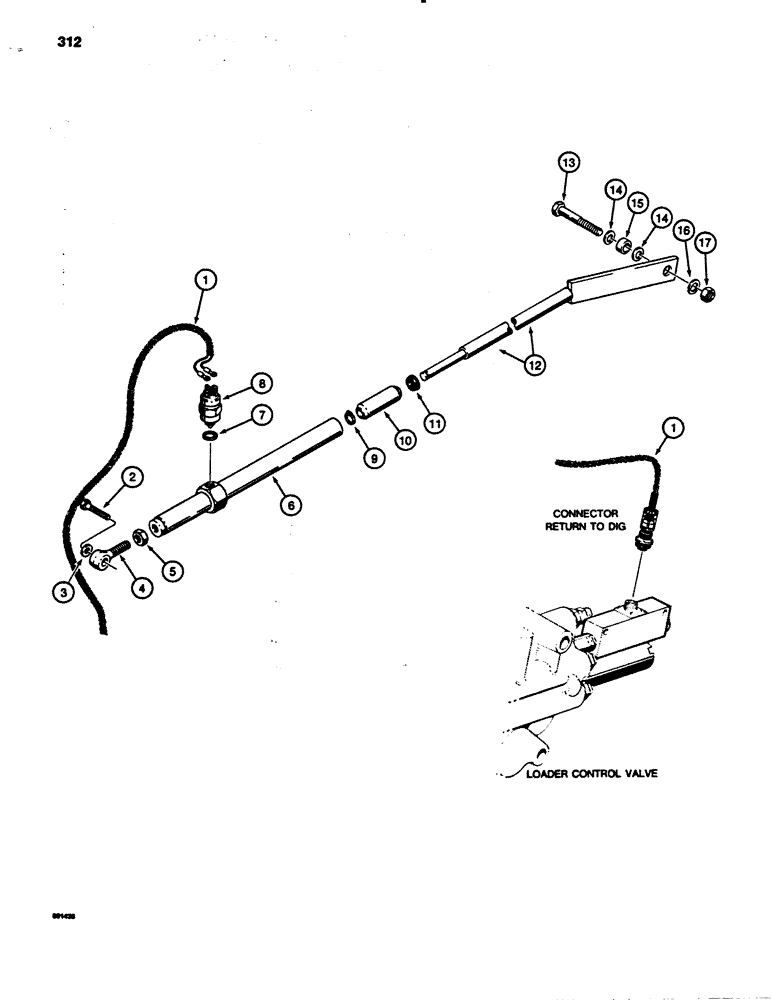

Запчасти Case 780B (312) - LOADER RETURN-TO-DIG PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HARNESS - wiring, rear parts list Figure 90

1шт.

2

A32042

STEP BOLT

SHOULDER BOLT - special

1шт.

3

195-533

WASHER,1/2", SAE

- flat, 1/2"

1шт.

4

L73773

EYE

BOLT - special

1шт.

5

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

1шт.

6

L103900

TUBE,5.1, 0.5" L

- outer

1шт.

7

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- switch

1шт.

8

L111328

SWITCH

- return-to-dig

1шт.

9

A11538

SNAP RING,#50, Ext

Ring, Snap, , tube #50, Ext

1шт.

10

L103902

TUBE,0.52" ID x 0.995" OD x 4.2" L

- inner slide

1шт.

11

L71557

SEAL

SEAL - inner tube

1шт.

12

L103897

ROD ASSY.

ROD - return-to-dig

1шт.

13

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

14

95-8

WASHER,1/2"

flat 1/2"

2шт.

15

L57298

BUSHING

- pivot

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.
