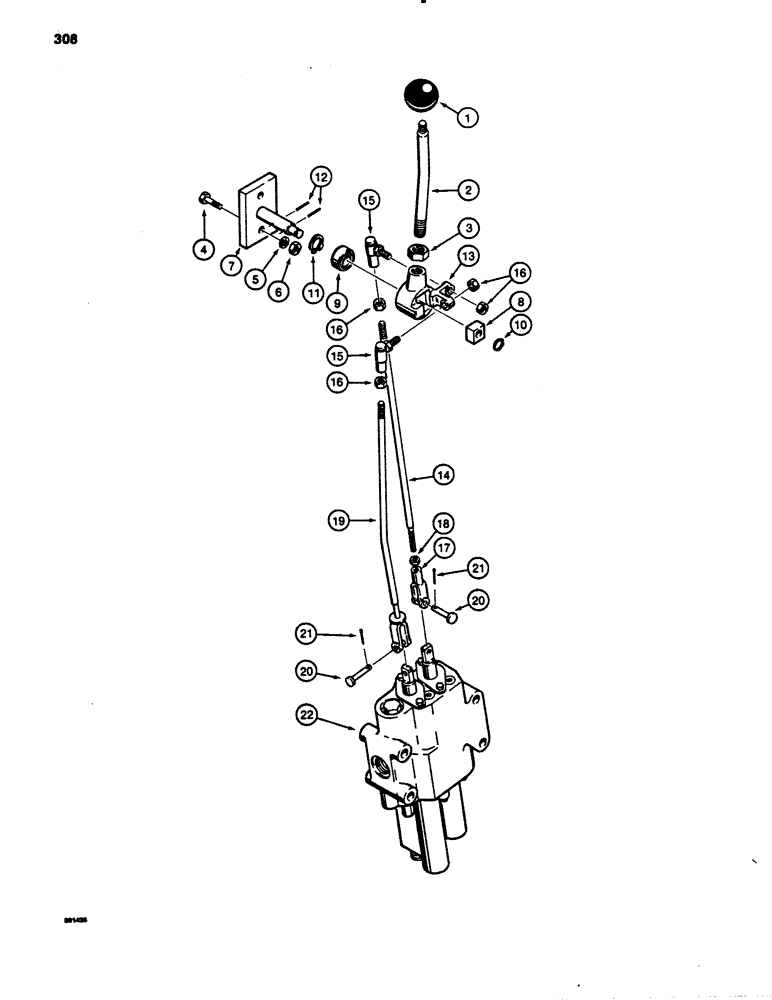

Запчасти Case 780B (308) - LOADER CONTROLS - 2 SPOOL VALVE AND LEVER (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

L102968

LEVER

CONTROL LEVER - loader

1шт.

3

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

7

L78119

PIVOT PIN

PIN - pivot

1шт.

8

D38305

BLOCK

- wear

1шт.

9

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- self-aligning

1шт.

10

A11538

SNAP RING,#50, Ext

Ring, Snap, , pin, small #50, Ext

1шт.

11

D1038223

SPRING

Ring, Snap, 1.438", Int, #143, pin, large

1шт.

12

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

13

L105056

LEVER

- pivot

1шт.

14

L103004

ROD

- loader lift control

1шт.

15

D38296

JOINT

BALL JOINT - 3/8"

2шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 24 NF

4шт.

17

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end, 5/16"

1шт.

18

25-155

JAM NUT,Jam, 5/16"-24, G5

JAM NUT - hex, 5/16" - 24 NF

1шт.

19

L103400

ROD

- loader bucket control

1шт.

20

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

21

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

22

REF

INSTRUCTION

CONTROL VALVE - loader, 2 spool, parts list Figure 242

1шт.
