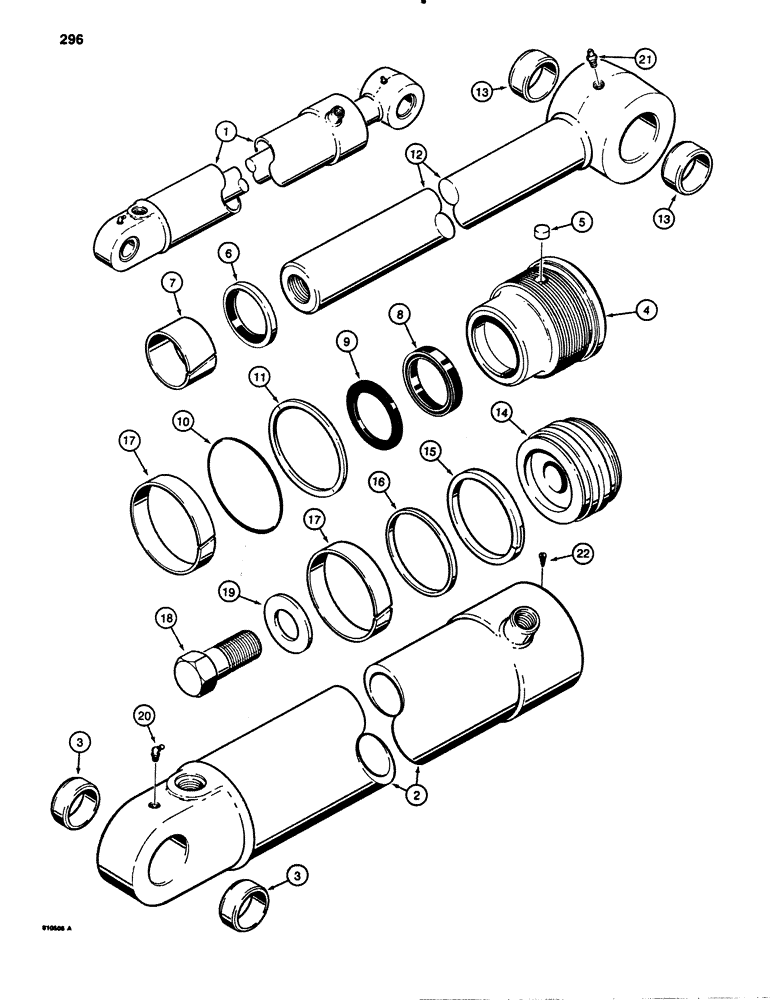

Запчасти Case 780B (296) - G105857 BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

G105857

CYLINDER

ASSEMBLY - bucket, 4-1/2" (114 mm) ID x 33" (838 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G105858

TUBE,4.5" DIA x 42.44" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

G104304

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105560

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit P/N G105560

1шт.

8

D45571

ROD

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105560

1шт.

9

G104902

RING

SEAL - piston rod, narrow

1шт.

Part of Seal Kit P/N G105560

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105560

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland o-ring

1шт.

Part of Seal Kit P/N G105560

1шт.

12

G105863

ROD

ASSEMBLY - piston, Includes: Ref. 14

1шт.

13

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- piston rod

2шт.

14

G102182

PISTON ASSY.

PISTON - cylinder

1шт.

15

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105560

1шт.

16

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105560

1шт.

17

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear

2шт.

Part of Seal Kit P/N G105560

1шт.

18

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

19

G105980

WASHER

- special

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

22

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

G105560

SEAL

KIT - seal, Includes: Ref. 6-11 and 15-17

1шт.

G100780

SEAL

- piston rod, service option - severe heat or cold

1шт.
