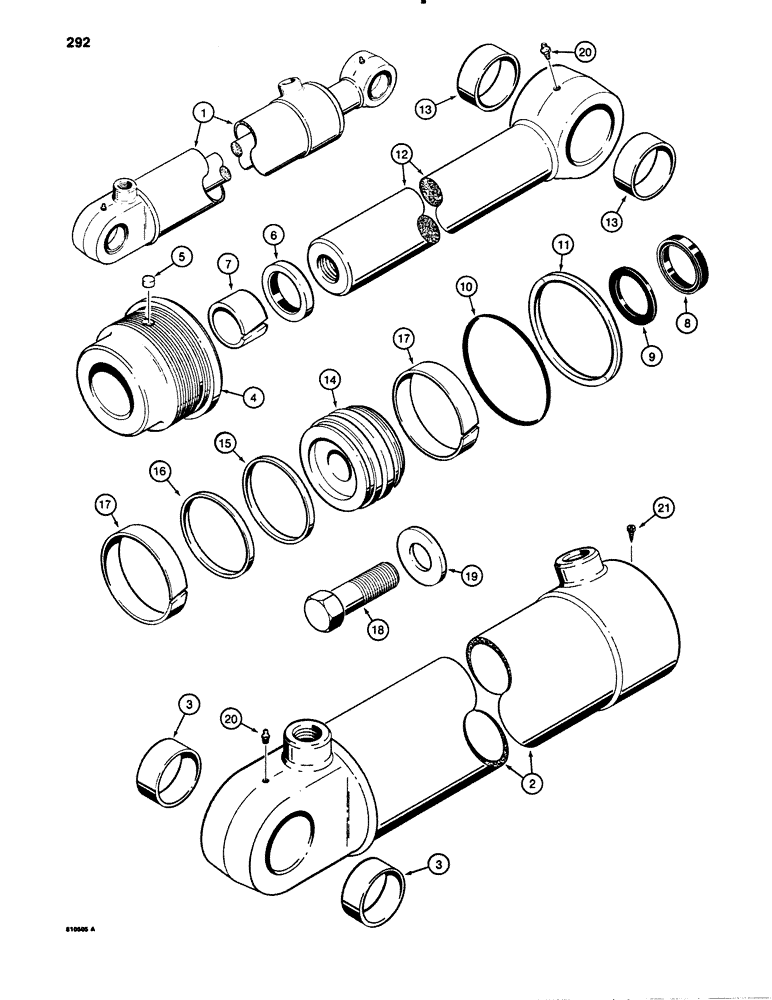

Запчасти Case 780B (292) - G103050 BACKHOE DIPPER CYLINDER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G103050
CYLINDER
ASSEMBLY - dipper, 5" (127 mm) ID x 44-15/16" (1142 mm) stroke, Includes: Ref. 2 - 21
1шт.
2
G103051
TUBE
ASSEMBLY - cylinder, Includes: Ref. 3
1шт.
3
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- tube
2шт.
G104320
GLAND
ASSEMBLY - cylinder, Includes: Ref. 4 - 11
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
5
G102569
PLUG
- nylon, thread locking, gland, if used
1шт.
6
D95147
WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk
WIPER - piston rod
1шт.
Part of Seal Kit P/N G105562
1шт.
7
G102428
BEARING,2.75mm ID x 69.85mm OD x 37.85 W
BUSHING - center
1шт.
Part of Seal Kit P/N G105562
1шт.
8
S220100
SEAL
U-CUP SEAL - piston rod, wide
1шт.
Part of Seal Kit P/N G105562
1шт.
9
G104962
SEAL
- piston rod, narrow
1шт.
Part of Seal Kit P/N G105562
1шт.
10
49393
O-RING,4.734" ID x 5.012" OD x 0.139"
- gland
1шт.
Part of Seal Kit P/N G105562
1шт.
11
S92639
RING
BACKUP RING - gland O-ring
1шт.
Part of Seal Kit P/N G105562
1шт.
12
G103056
ROD ASSY.
ROD ASSEMBLY - piston, 2-3/4" (70 mm) OD, Includes: Ref. 13
1шт.
13
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- piston rod
2шт.
14
G103116
PISTON
- cylinder
1шт.
15
G102091
SEAL,128.52mm OD x 6.96mm Thk
- piston
1шт.
Part of Seal Kit P/N G105562
1шт.
16
G102092
RING,Square, 5.28mm Thk x 113.92mm ID
BACKUP RING - piston seal
1шт.
Part of Seal Kit P/N G105562
1шт.
17
G102090
RING,127mm OD, Ext
- wear
2шт.
Part of Seal Kit P/N G105562
1шт.
18
28-2456
BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8
- hex head, 1-1/2" - NF x 3-1/2", grade 8
1шт.
19
G104990
WASHER
- special
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
1шт.
21
187-1524
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used
1шт.
G105562
SEAL
KIT - seal, Includes: Ref. 6-11 and 15-17
1шт.
G100781
SEAL ASSY.
SEAL - piston rod, service option - severe heat or cold
1шт.
