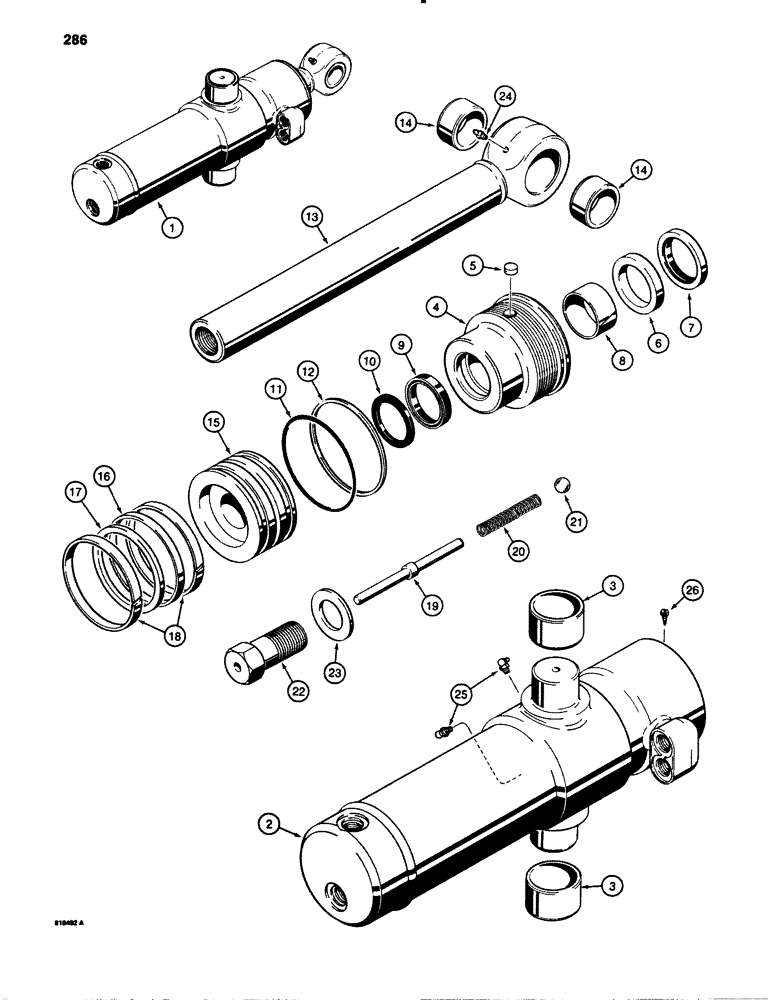

Запчасти Case 780B (286) - G103072 BACKHOE SWING CYLINDER (08) - HYDRAULICS

1

G103072

CYLINDER

ASSEMBLY - swing, 4" (101 mm) x 14-3/4" (375 mm) stroke, Includes: Ref. 2 - 26

2шт.

2

G102986

TUBE,22.07" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

- tube

2шт.

G104407

GLAND

ASSEMBLY - cylinder, no longer used, for service order G107524 gland assembly, Includes: Ref. 4 - 12

1шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Retaining - Gland assembly

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G105545

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105545

1шт.

9

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105545

1шт.

10

G102647

SEAL

- piston rod, narrow

1шт.

Part of Seal Kit P/N G105545

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105545

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of Seal Kit P/N G105545

1шт.

13

G102990

ROD

ASSEMBLY - piston, 2" (51 mm) OD, Includes: Ref. 14

1шт.

14

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

- piston rod

2шт.

15

G101309

PISTON

- cylinder

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105545

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105545

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G105545

1шт.

19

G102245

AXLE PIN

PIN - cushion relief

1шт.

20

D38683

SPRING

- cushion relief

1шт.

21

211-17

BALL,3/4" Dia

- cushion relief spring

1шт.

22

G34885

BOLT

BOLT - piston and cushion relief

1шт.

23

G32351

WASHER

- special

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

2шт.

26

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

G105545

SEAL

KIT - seal, Includes: Ref. 7-12 and 16-18

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.
