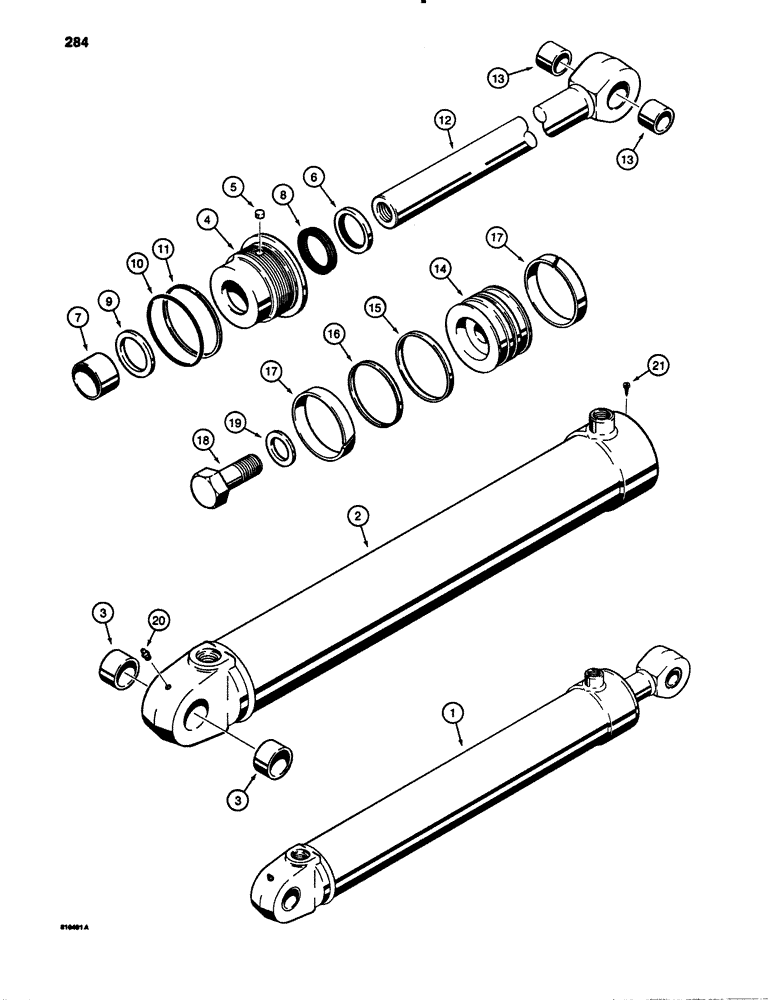

Запчасти Case 780B (284) - G103057 BACKHOE STABILIZER CYLINDER (08) - HYDRAULICS

1

G103057

CYLINDER ASSY.

CYLINDER ASSEMBLY - stabilizer, 4-1/2" (114 mm) ID x 28-1/2" (724 mm) stroke, Includes: Ref. 2 - 21

2шт.

2

G103058

TUBE,4.5" DIA x 37.91" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D35071

BUSHING

- tube

2шт.

G104950

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105557

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit P/N G105557

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105557

1шт.

9

G103447

RING

SEAL - piston rod, narrow

1шт.

Part of Seal Kit P/N G105557

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105557

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105557

1шт.

12

G103063

ROD ASSY.

ROD ASSEMBLY - piston, 2-1/4" (57 mm) OD, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

This part is not used. Rod is used without bushings.

1шт.

14

G102186

PISTON

- cylinder

1шт.

15

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEAL - piston

1шт.

Part of Seal Kit P/N G105557

1шт.

16

G101994

SEAL,RECTANGULAR, 111.02mm ID x 115.75mm OD x 6.96mm Thk

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105557

1шт.

17

G101996

WEAR RING,4.5" OD x 0.75" Thk

RING - wear

2шт.

Part of Seal Kit P/N G105557

1шт.

18

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

19

G32351

WASHER

- special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

21

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No.8 - 32 NC x 3/8", if used

1шт.

G105557

SEAL

KIT - seal, Includes: Ref. 6-11 and 15-17, Includes: P/N G102622

1шт.

G100779

SEAL

- piston rod, service option - severe heat or cold

1шт.
