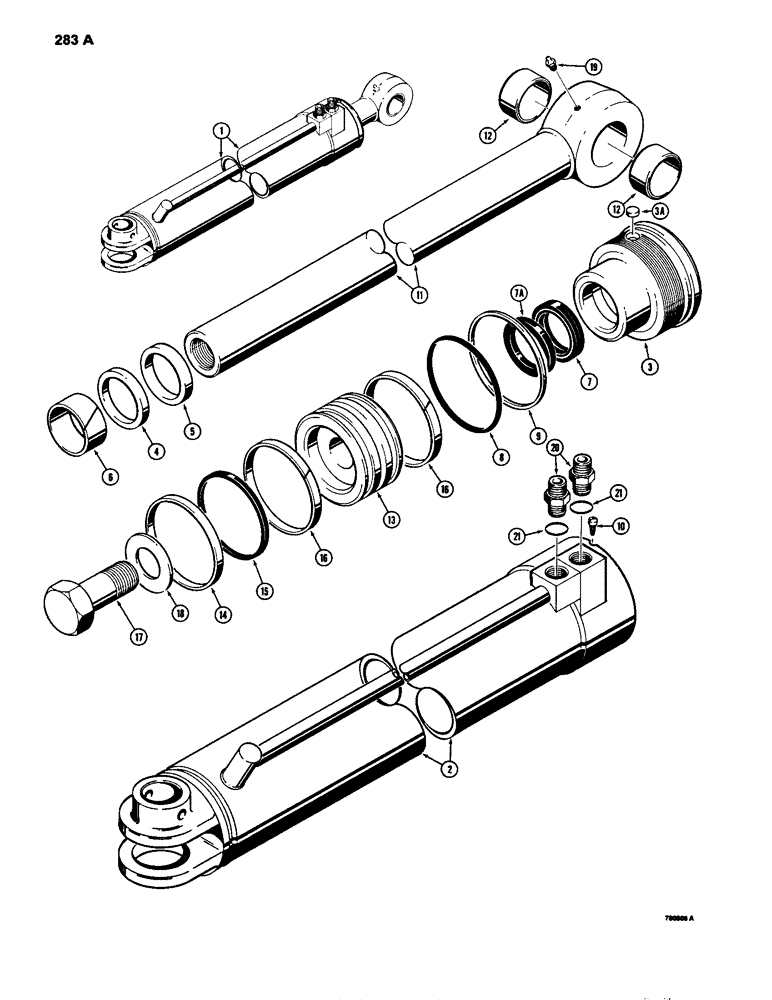

Запчасти Case 780B (283A) - G101564 AND G101565 LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

G101564

CYLINDER BLOCK

CYLINDER ASSEMBLY - clam, right-hand, 4" (102 mm) ID x 10" (254 mm) stroke, Includes: Ref. 2 - 19

1шт.

1

G101565

CYLINDER BLOCK

CYLINDER ASSEMBLY - clam, left-hand, 4" (102 mm) ID x 10" (254 mm) stroke, Includes: Ref. 2 - 19

1шт.

2

G31964

HYD TUBE,18.69" L

TUBE ASSEMBLY - cylinder, right-hand

1шт.

2

G31965

HYD TUBE

TUBE ASSEMBLY - cylinder, left-hand

1шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G105545

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105545

1шт.

7

D36971

RING

SEAL - piston rod

1шт.

Part of Seal Kit P/N G105545

1шт.

7a

G102647

SEAL

- piston rod, narrow

1шт.

Part of Seal Kit P/N G105545

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105545

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland

1шт.

Part of Seal Kit P/N G105545

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

11

G33626

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 12

1шт.

12

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105545

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston

1шт.

Part of Seal Kit P/N G105545

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit P/N G105545

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- special

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

20

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 21 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

G105545

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 14 - 16

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
