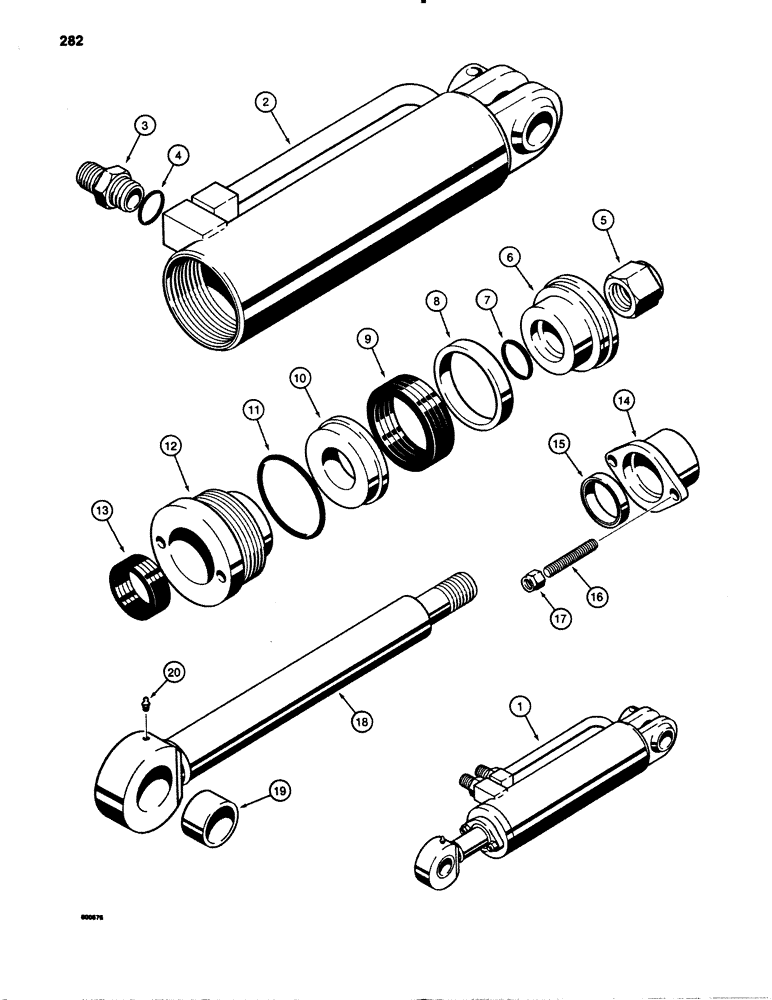

Запчасти Case 780B (282) - A17668 AND A17669 CLAM CYLINDERS (08) - HYDRAULICS

1

A17668

CYLINDER

ASSEMBLY - clam, right-hand, 4" (102 mm) ID x 10" (254 mm) stroke, no longer available, for complete cylinder assembly, order G101564 cylinder, see Figure 283A, Includes: Ref. 2 - 20

1шт.

1

A17669

CYLINDER

ASSEMBLY - clam, left-hand, 4" (102 mm) ID x 10" (254 mm) stroke, no longer available, for complete cylinder assembly, order G101565 cylinder, see Figure 283A, Includes: Ref. 2 - 20

1шт.

2

S27939

TUBE ASSY.

TUBE ASSEMBLY - right-hand, Includes: Ref. 3 and 4

1шт.

2

G31965

HYD TUBE

TUBE ASSEMBLY - left-hand, Includes: Ref. 3 and 4

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, male, Incl. Ref. 4 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.

5

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

6

S28225

PISTON

- half, nut end

1шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

8

S23703

RING

- wiper

1шт.

9

S25984

PACKING

- piston

1шт.

10

S28259

PISTON

- half, eye end

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

12

S28221

HEAD (CYLINDER)

GLAND - packing, outer

1шт.

13

S28120

CUP

PACKING - gland

1шт.

14

S28562

FLANGE

GLAND - packing, inner

1шт.

15

S40025

WIPER SEAL

- wiper

1шт.

16

S40005

STUD

- flange

2шт.

17

131-181

LOCK NUT,3/8"-24, GC

NUT - hex, 3/8" - 24 NF

2шт.

18

S26065

PISTON ROD

ROD - cylinder, Includes: Ref. 19

1шт.

19

S23796

BUSHING

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.
