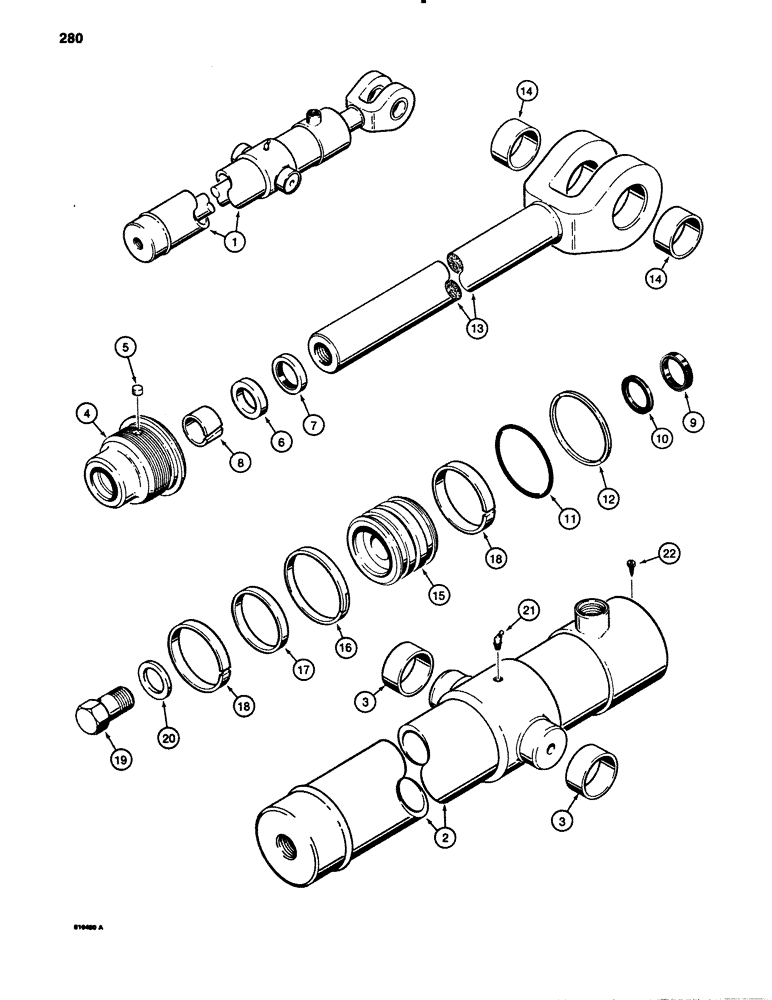

Запчасти Case 780B (280) - G103753 LOADER BUCKET TILT CYLINDER (08) - HYDRAULICS

1

G103753

CYLINDER

ASSEMBLY - bucket, 3-1/2" (89 mm) ID x 23-3/8" (593 mm) stroke, Includes: Ref. 2 - 22

2шт.

2

G103754

TUBE,30.51" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

- tube

2шт.

G104402

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - gland assembly

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G105546

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105546

1шт.

9

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105546

1шт.

10

G102647

SEAL

- piston rod, narrow

1шт.

Part of Seal Kit P/N G105546

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105546

1шт.

12

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105546

1шт.

13

G103089

ROD

ASSEMBLY - piston, 2" (51 mm) OD, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G100692

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105546

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105546

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G105546

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- special

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

22

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

G105546

SEAL

KIT - seal, Includes: Ref. 7-12 and 16-18

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.
