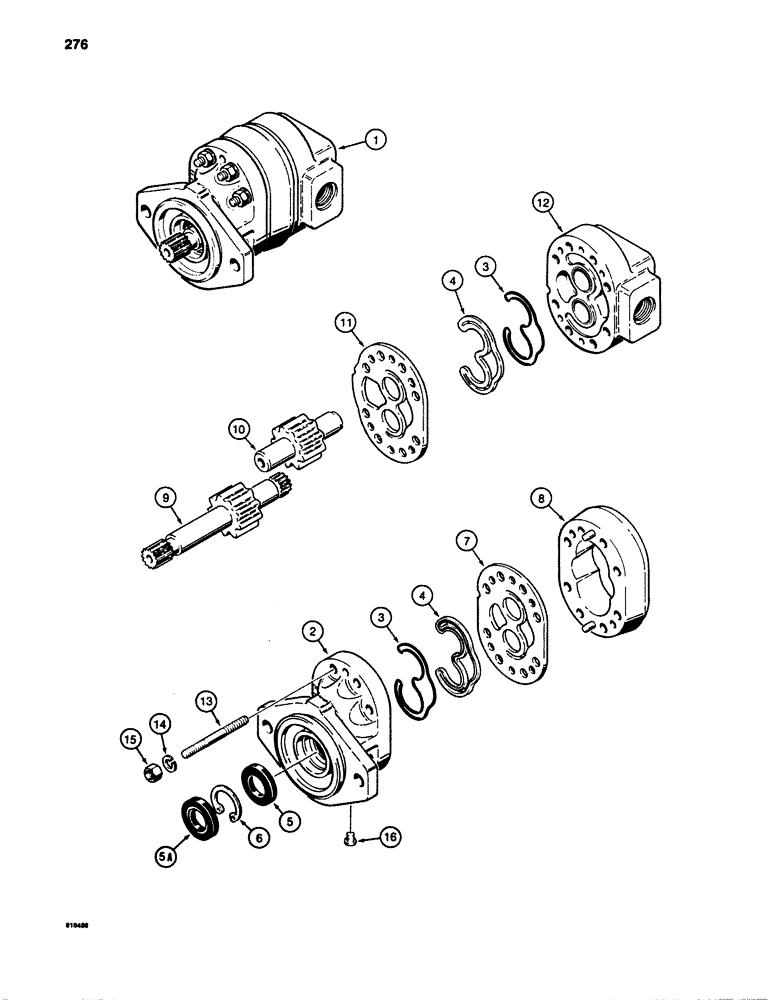

Запчасти Case 780B (276) - D127915 TRANSMISSION MOUNTED HYDRAULIC PUMP (08) - HYDRAULICS

1

D127915

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - Sperry Vickers No. G20-2W17V1-B12A30-S22, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - drive shaft end

1шт.

N7126

SEAL KIT

- seal, cover, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - O-ring

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - shaft, inner

1шт.

5a

NSS

NOT SOLD SEPARAT

SEAL - shaft, outer

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

N60292

PLATE

- wear, front

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR HOUSING - drive shaft end

1шт.

9

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump

1шт.

10

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump

1шт.

11

N60296

PLATE

- wear, rear

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

13

NSS

NOT SOLD SEPARAT

STUD - cover

8шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

15

129-104

NUT,7/16"-14, G5

8шт.

16

NSS

NOT SOLD SEPARAT

PLUG - cover

1шт.
