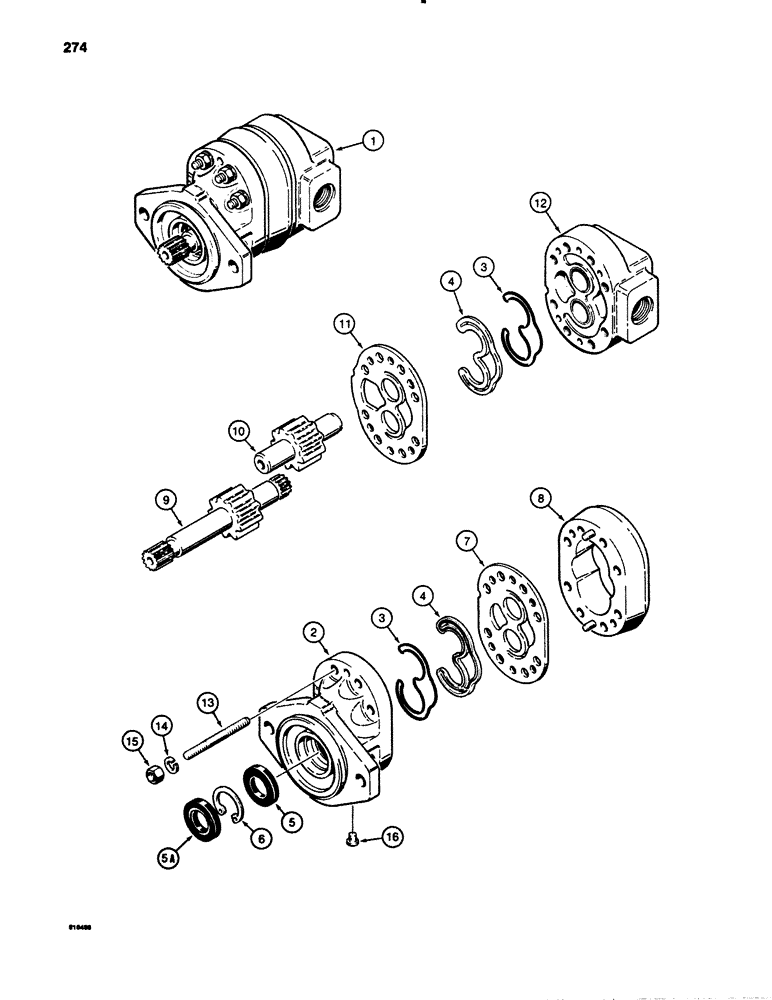

Запчасти Case 780B (274) - D127914 FRONT MOUNTED HYDRAULIC PUMP (08) - HYDRAULICS

1

D127914

PUMP

HYDRAULIC PUMP ASSEMBLY - Sperry Vickers No. G20-2W15V1-A99A30L - S22, Includes: Ref. 2 - 16

1шт.

Around June of 1992, the supplier part number for this pump was changed. It was originally supplied by Vickers, but that portion of business was acquired by J S Barnes. Internal construction of pumps was changed, but Case part number did not change as there were no exterior physical changes to pumps and form, fit and function were not affected. Service breakdowns are revised to reflect internal changes (refer to tech analyst catalog for ECN D923010 for parts changes). Earlier pumps had an encapsulate wea

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - drive shaft end

1шт.

N7126

SEAL KIT

- seal, cover, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - O-ring

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

5a

NSS

NOT SOLD SEPARAT

SEAL - shaft outer

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

N60292

PLATE

- wear, front

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR HOUSING - drive shaft end

1шт.

9

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump

1шт.

10

N60295

GEAR WHEEL

DRIVEN GEAR - pump

1шт.

11

N60296

PLATE

- wear, rear

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

13

N9272

STUD

- cover

8шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

15

129-104

NUT,7/16"-14, G5

8шт.

16

NSS

NOT SOLD SEPARAT

PLUG - cover

1шт.
