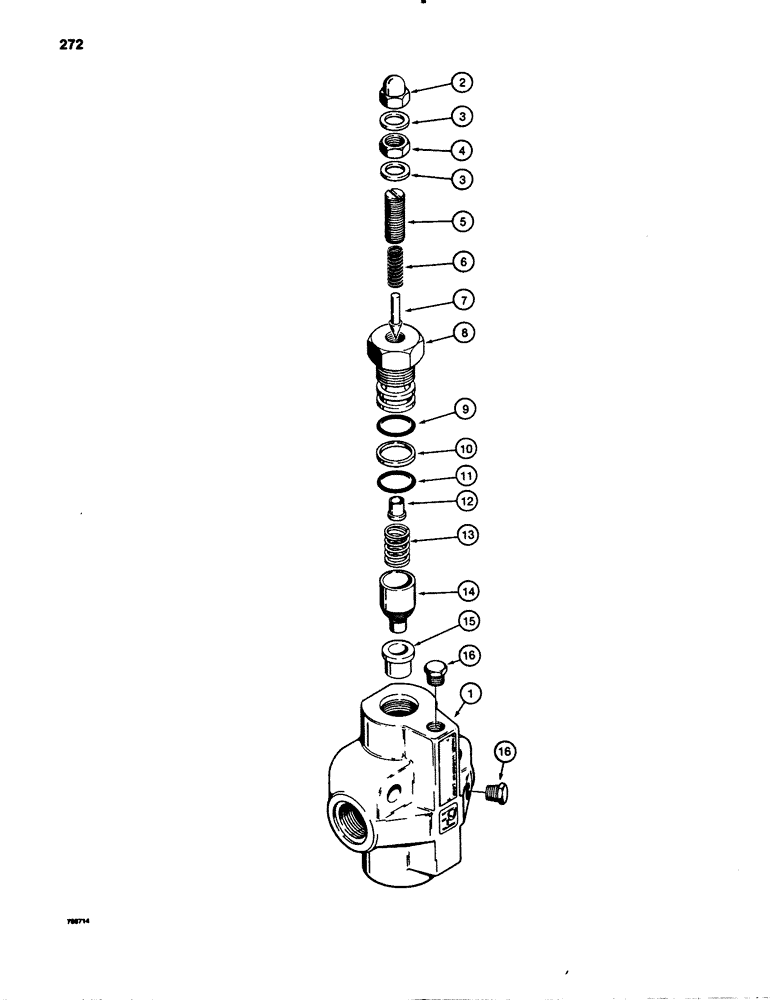

Запчасти Case 780B (272) - L106548 HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

L106548

VALVE

RELIEF VALVE ASSEMBLY - hydraulic, Parker Hannifin No. VPRP5B3-A-AA-263, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

W12116

KIT

RELIEF VALVE ASSEMBLY - less body, Includes: Ref. 2 - 15

1шт.

2

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - relief valve

1шт.

3

D26270

WASHER, SEALING

SEAL - lock nut and dome nut

2шт.

4

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

5

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

- 5/16" - 24 NF x 7/8"

1шт.

6

D26268

SPRING

- plunger

1шт.

7

D26267

PLUNGER

- pilot

1шт.

8

D26262

CAP

- relief valve body

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- outer

1шт.

10

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - O-ring

1шт.

11

L30444

O-RING,0.521" ID x 0.661" OD

- inner

1шт.

12

D26266

SEAT

- poppet

1шт.

13

D26261

VALVE SPRING

SPRING - poppet

1шт.

14

L30687

SPOOL

POPPET ASSEMBLY - relief valve

1шт.

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

NSS

NOT SOLD SEPARAT

SCREEN - poppet

1шт.

W12133

RETAINER - snap ring

1шт.

15

D26259

SEAT

- relief valve poppet

1шт.

16

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, 1/8" NPT

2шт.
