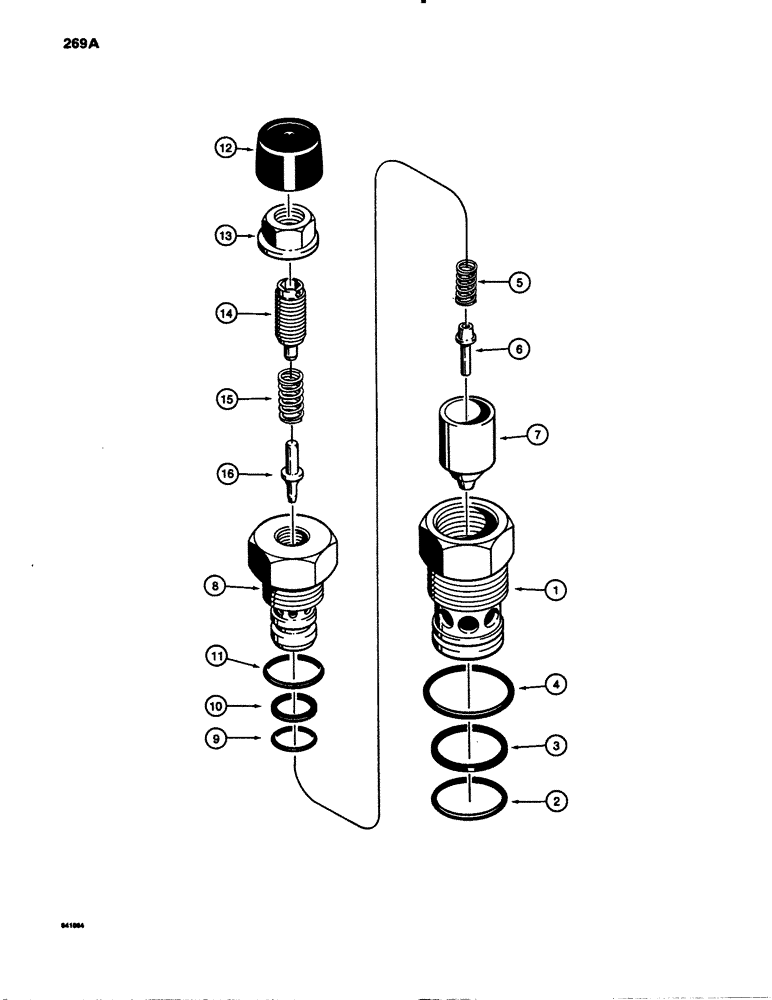

Запчасти Case 780B (269A) - D128695 ANTICAVITATION AND RELIEF VALVE (08) - HYDRAULICS

D128695

VALVE

- anticavitation and relief, used in the boom, bucket, dipper, and swing sections, Includes: Ref. 1 - 16

1-8шт.

Pressure setting is not preset for these applications. Please refer to your 780B Service Manual for the correct pressure settings.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- small, body

1шт.

3

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

BACKUP RING - small O-ring

1шт.

4

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, body

1шт.

5

N9267

SPRING

- plunger

1шт.

6

N9264

PLUNGER

- valve

1шт.

7

N9263

PISTON

POPPET - anticavitation

1шт.

8

N9262

SEAT

- valve

1шт.

9

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- small, poppet

1шт.

10

H754622

RING

BACKUP RING - small O-ring

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- large, poppet

1шт.

12

N9270

CAP

- valve

1шт.

13

N9269

SPECIAL NUT

- special

1шт.

14

N9266

ADJUSTMENT SCREW,M10 x 1 x 1.14mm

- special, adjusting

1шт.

15

N9268

SPRING

- relief

1шт.

16

N9265

PISTON

POPPET - relief

1шт.
