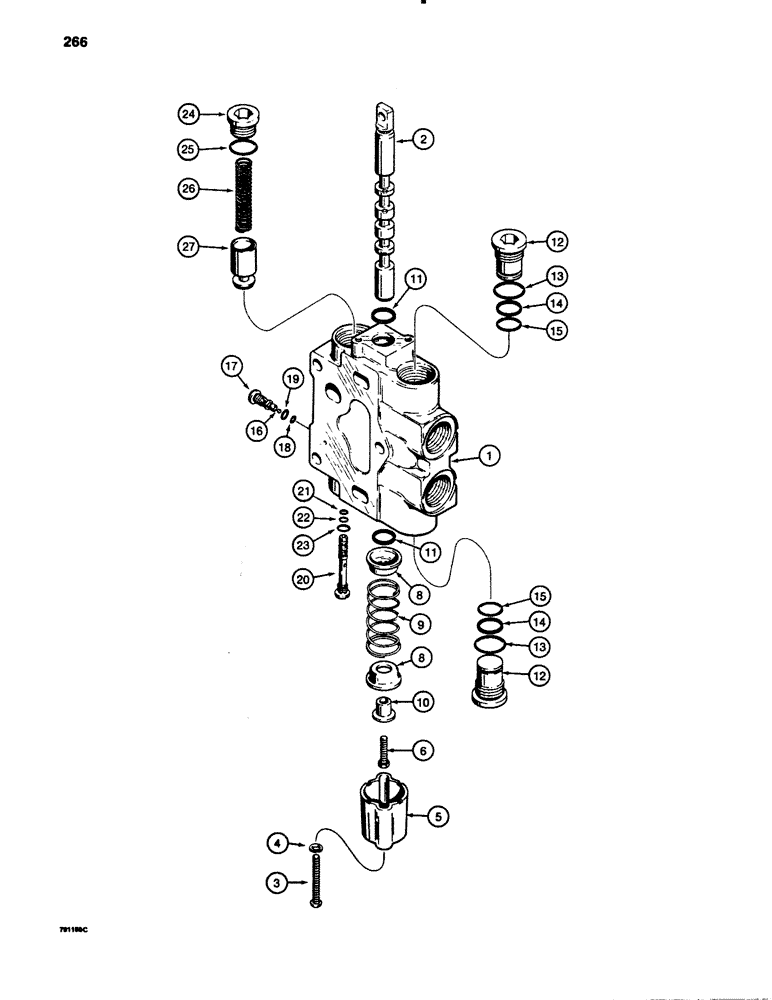

Запчасти Case 780B (266) - BACKHOE CONTROL VALVE, EXTENDABLE DIPPER SECTION (08) - HYDRAULICS

D87073

SEGMENT

EXTENDABLE DIPPER SECTION ASSEMBLY - identification No. 217, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- slotted, 1/4" - 20 NC x 2-1/4"

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

D78454

HOUSING

- spring

1шт.

6

75-416

SCREW,Rd, 1/4" - 20 x 1"

- slotted, 1/4" - 20 NC x 1"

1шт.

7

RESERVED

1шт.

8

CASR30191

RETAINER

- spring

2шт.

9

R30192

SPRING

- section

1шт.

10

D78452

BUSHING

SPACER - spring

1шт.

11

G46908

O-RING

- body

2шт.

12

R30167

PLUG

- body

2шт.

R30174

GASKET KIT

KIT - seal, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

14

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-255

BALL,3/16 Dia

steel 3/16 Dia

1шт.

A47210

PLUG

SHUTTLE - secondary, Includes: Ref. 17 - 19

1шт.

17

A47204

PLUG

SEAT - shuttle, secondary

1шт.

18

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

19

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

-008, 90 Duro, .176" ID x .070" Thk, large

1шт.

D87080

VALVE

SHUTTLE - primary, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - shuttle, primary

1шт.

N6632

SEAL KIT

- seal, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - medium

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

24

9841223

PLUG,1-1/16" - 12 ORB

Body, Incl. Ref. 25 Hex Soc, 1 1/16"-12 ORB

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

26

R30189

SPRING

- body

1шт.

27

D87082

VALVE POPPET

POPPET - body

1шт.
