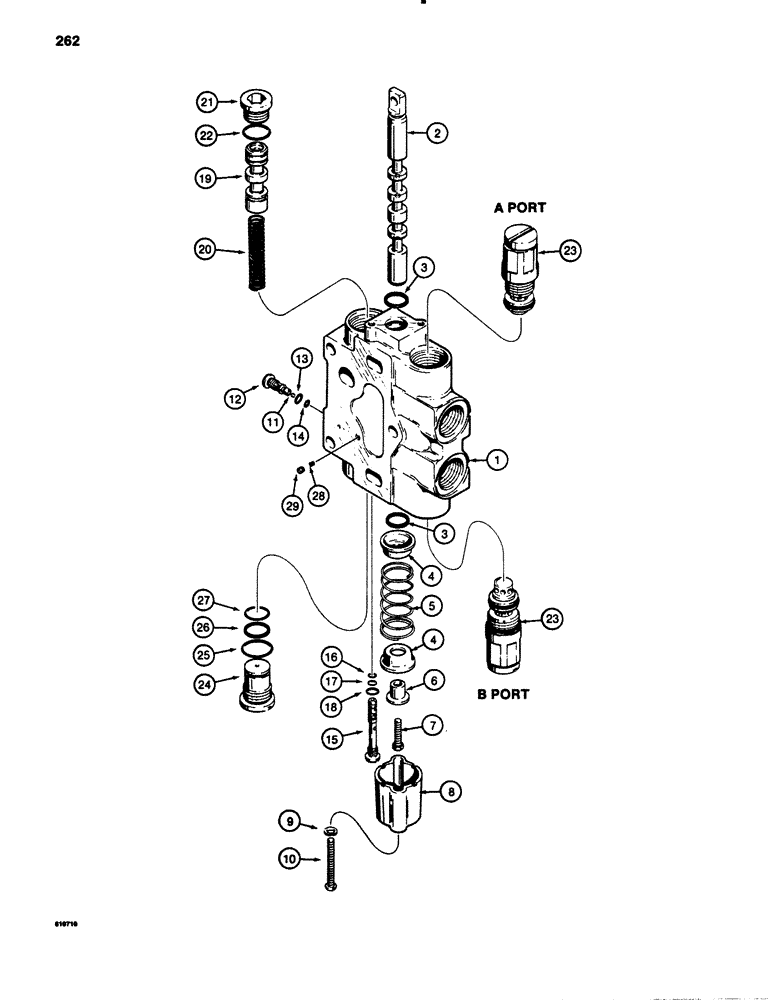

Запчасти Case 780B (262) - BACKHOE CONTROL VALVE, DIPPER SECTION (08) - HYDRAULICS

N7494

KNIFE SECTION

DIPPER SECTION ASSEMBLY - identification No. 232, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control valve

1шт.

3

G46908

O-RING

- spool

2шт.

4

R30191

WASHER

- spring

2шт.

5

R30192

SPRING

- centering

1шт.

6

D78452

BUSHING

SPACER - retainer

1шт.

7

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

BOLT, Locking, 1/4"-20 x 1", G5

1шт.

8

D78454

HOUSING

- spool cover

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

61-436

HEX SOC SCREW,1/4"-20 x 2 1/4"

SCREW - ferry head, 1/4"-20 NC x 2-1/2"

2шт.

11

211-255

BALL,3/16 Dia

steel 3/16 Dia

1шт.

A47210

PLUG

SHUTTLE - secondary, Includes: Ref. 12 - 14

1шт.

12

A47204

PLUG

SEAT - shuttle secondary

1шт.

13

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

14

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

-008, 90 Duro, .176" ID x .070" Thk, small

1шт.

D87080

VALVE

SHUTTLE - primary, Includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - shuttle primary

1шт.

N6632

SEAL KIT

- seal, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - medium

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

19

N7500

SPOOL

- load check

1шт.

20

N7501

SPRING

- spool

1шт.

21

9841223

PLUG,1-1/16" - 12 ORB

Load check spool, Incl. Ref. 22 Hex Soc, 1 1/16"-12 ORB

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

23

REF

INSTRUCTION

VALVE - anticavitation and relief, for "A'' and "B'' ports, parts list Figure 268 or 269A

2шт.

Pressure setting is not preset for these applications. Please refer to your 780B Service Manual for the correct pressure settings.

1шт.

N7504

PLUG

ASSEMBLY - control valve body, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - control valve body

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

26

N7509

RING

- backup

1шт.

27

A55911

O-RING,0.807" ID

- small

1шт.

28

A47213

PLUG

- inside

1шт.

29

A47105

PLUG

- outside

1шт.
