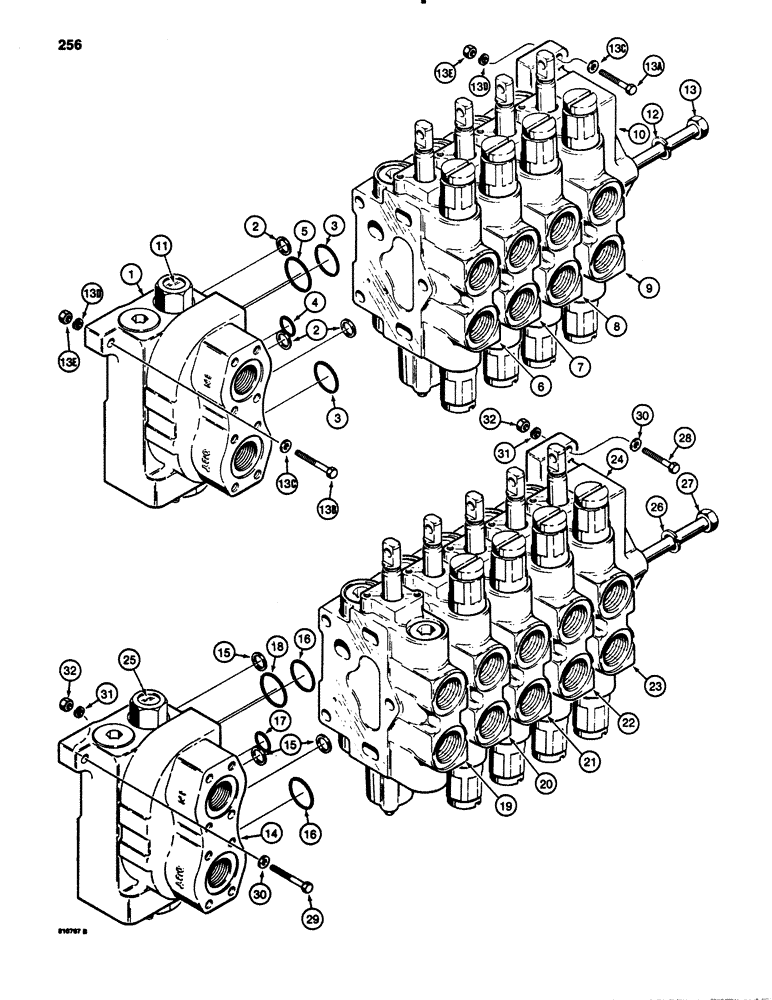

Запчасти Case 780B (256) - L107615 BACKHOE CONTROL VALVE, W/O EXTENDABLE DIPPER, L107616 BACKHOE CONTROL VALVE W/ EXTENDABLE (08) - HYDRAULICS

L107615

CONTROL VALVE

ASSEMBLY - backhoe, 4 section valve, Includes: Ref. 1 - 27

1шт.

1

N7492

KNIFE SECTION

INLET SECTION - parts list Figure 258

1шт.

2

D77566

SHIM,.0030" Thk

Control valve .0030" Thk

15шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 3 - 5

5шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37mm) OD

1шт.

6

N7493

KNIFE SECTION

BOOM SECTION - parts list Figure 260

1шт.

7

N7494

KNIFE SECTION

DIPPER SECTION - parts list Figure 262

1шт.

8

N7496

KNIFE SECTION

BUCKET SECTION - parts list Figure 260

1шт.

9

N7495

KNIFE SECTION

SWING SECTION - parts list Figure 264

1шт.

10

D87072

COVER ASSY

COVER - end

1шт.

11

D87075

COVER

CAP - dust

1шт.

12

92-7

LOCK WASHER,7/16"

3шт.

13

D74375

BOLT

- hex head, 7/16" - 14 NC x 11"

3шт.

13a

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13b

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

13c

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

13d

92-6

LOCK WASHER,3/8"

3шт.

13e

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

15

D77566

SHIM,.0030" Thk

Control valve .0030" Thk

18шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 16 - 18

6шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

19

D87073

SEGMENT

EXTENDABLE DIPPER SECTION - parts list Figure 266

1шт.

20

N7493

KNIFE SECTION

BOOM SECTION - parts list Figure 260

1шт.

21

N7494

KNIFE SECTION

DIPPER SECTION - parts list Figure 262

1шт.

22

N7496

KNIFE SECTION

BUCKET SECTION - parts list Figure 260

1шт.

23

N7495

KNIFE SECTION

SWING SECTION - parts list Figure 264

1шт.

24

D87072

COVER ASSY

COVER - end

1шт.

25

D87075

COVER

CAP - dust

1шт.

26

92-7

LOCK WASHER,7/16"

3шт.

27

N7497

BOLT

BOLT - hex head, 7/16" - 14 NC x 13"

3шт.

28

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

29

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.
