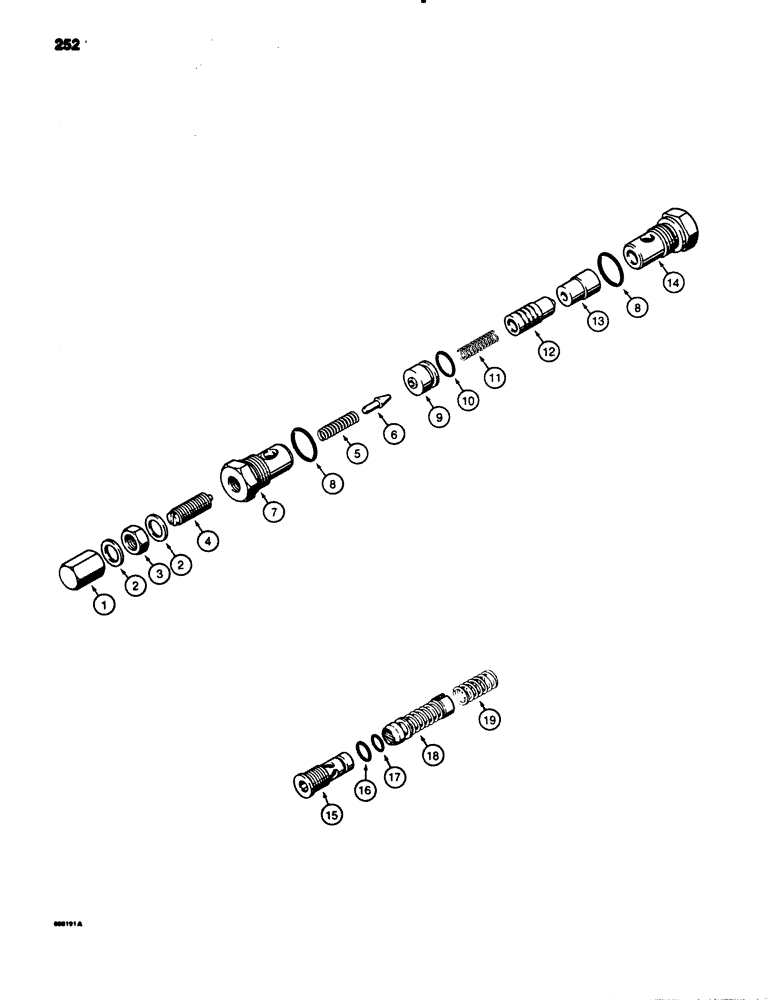

Запчасти Case 780B (252) - HYDRECO LOADER CONTROL VALVE, RELIEF VALVES, MAIN RELIEF VALVE (08) - HYDRAULICS

1

L32299

NUT

hex, special

1шт.

2

D26763

WASHER

special

2шт.

3

25-158

JAM NUT,Jam, 1/2"-20, G5

LOCK - hex, 1/2" - 18 NF

1шт.

4

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

ADJUSTING - main relief valve

1шт.

5

D24763

SPRING

plunger

1шт.

6

D24762

VALVE

PLUNGER - main relief

1шт.

7

D82718

BODY

CAP - valve

1шт.

8

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

cap and plug

2шт.

9

D82716

VALVE

SEAT - plunger

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

seat

1шт.

11

D82724

SPRING

poppet

1шт.

12

D72745

VALVE

POPPET - main relief

1шт.

13

D82715

VALVE

SEAT - poppet

1шт.

14

D82719

PLUG

main relief valve

1шт.

N6716

VALVE

SECONDARY RELIEF ASSEMBLY - complete, Includes: Ref. 15 - 19

2-4шт.

15

N6717

PLUG

- secondary relief valve

1шт.

16

D24754

GASKET

O-RING - outer, secondary relief valve

1шт.

17

N7330

O-RING

inner, secondary relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY - secondary relief valve

1шт.

19

N6594

VALVE SPRING

inner, secondary relief valve

1шт.
