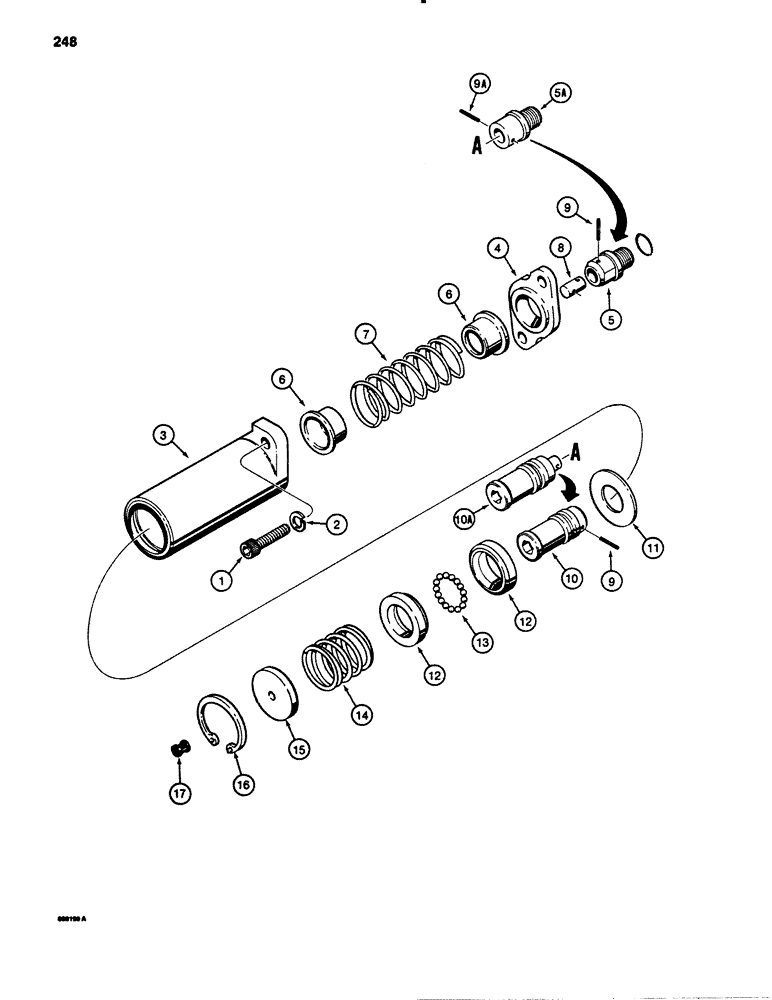

Запчасти Case 780B (248) - HYDRECO LOADER CONTROL VALVE, LIFT SPOOL DETENT (08) - HYDRAULICS

N8211

DETENT

ASSEMBLY - lift spool, Includes: Ref. 1 - 17

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16" - 18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

N6607

CAP

PLUG - spool end, used with Refs. 8 and 10 for O-ring number, see spool parts list on Figure 246

1шт.

5a

N8213

PLUG

- spool end, used with Ref. 10A, does not use center link, Ref. 8

1шт.

6

D24777

COLLAR

RETAINER - spring

2шт.

7

N6610

VALVE SPRING

CENTERING SPRING - spool

1шт.

8

N6609

PIN

LINK - spool detent, used with Refs. 5 and 10

1шт.

9

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, , Used with refs. 5, 8, and 10 1/8" x 11/16", Slotted

2шт.

9a

138-72

LOCK PIN,5/32" x 11/16", Slotted

Pin, , Used with Refs. 5A and 10A 5/32" x 11/16", Slotted

1шт.

10

N6606

CAP

SLEEVE - detent, used with Refs. 5 and 8

1шт.

10a

N8214

CAP

SLEEVE - detent, used with Ref. 5A, does not use center link, Ref. 8

1шт.

11

D1038223

SPRING

Ring, Snap, 1.438", Int, #143, detent

1шт.

Illustration is incorrect for this part. Part number is correct and is actually a snap ring.

1шт.

12

N6605

RETAINER

- ball

2шт.

13

211-109

BALL

- detent

15шт.

14

N6669

VALVE SPRING

SPRING - detent

1шт.

15

N6608

PLUG

- detent housing

1шт.

16

H746388

SNAP RING,1.438", Int, #143

Ring, Snap, , detent cover 1.438", Int, #143

1шт.

17

L31734

PLUG

- vent

1шт.
