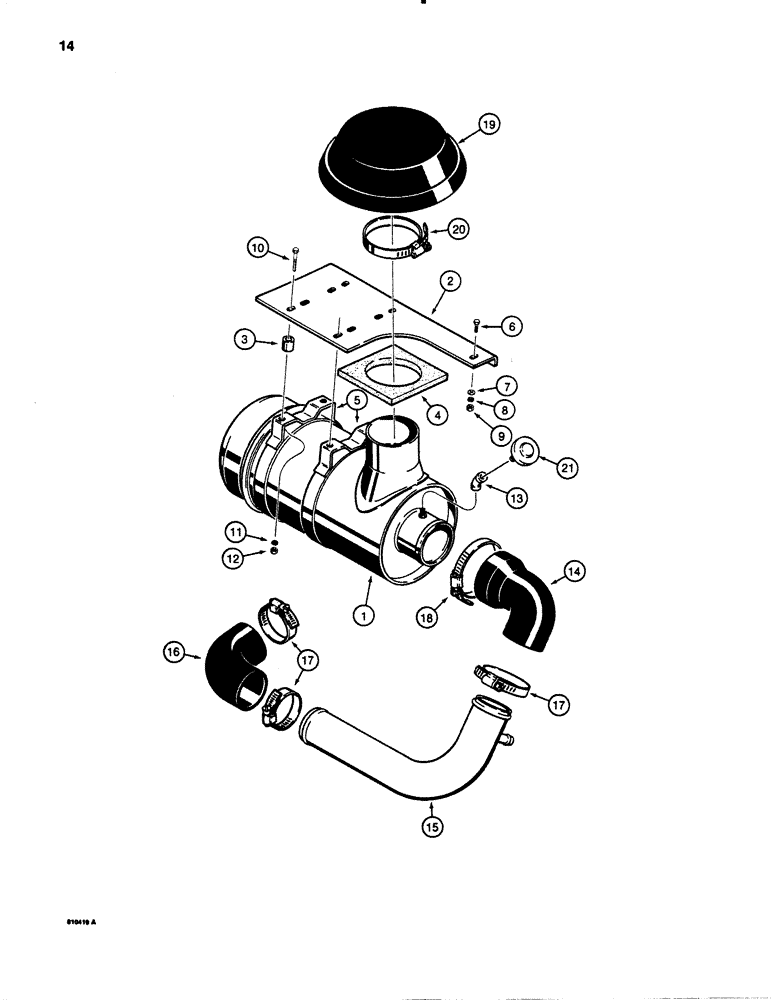

Запчасти Case 780B (014) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

L101785

CLEANER

AIR CLEANER - engine, parts list Figure 16

1шт.

2

L105700

BRACKET - air cleaner mounting

1шт.

3

D76210

SPACER

- air cleaner mounting bracket

4шт.

4

L106569

FOAM - air cleaner

1шт.

5

A149780

BAND

CLAMP - air cleaner mounting

2шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

10

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

13

221-365

ELBOW,45 Degree, 1/8" NPT

- 45 degree, air cleaner

1шт.

14

S112515

ELBOW

- 90 degree, rubber, reducing

1шт.

15

L103843

ELBOW

ADAPTER - elbow, 90 degree

1шт.

16

D36262

LARGE HOSE

ELBOW - 90 degree, rubber

1шт.

17

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose

3шт.

18

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, at air cleaner

1шт.

19

L10659

CAP

- air cleaner

1шт.

20

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - cap

1шт.

21

L103131

INDICATOR

SWITCH - air cleaner restriction

1шт.
