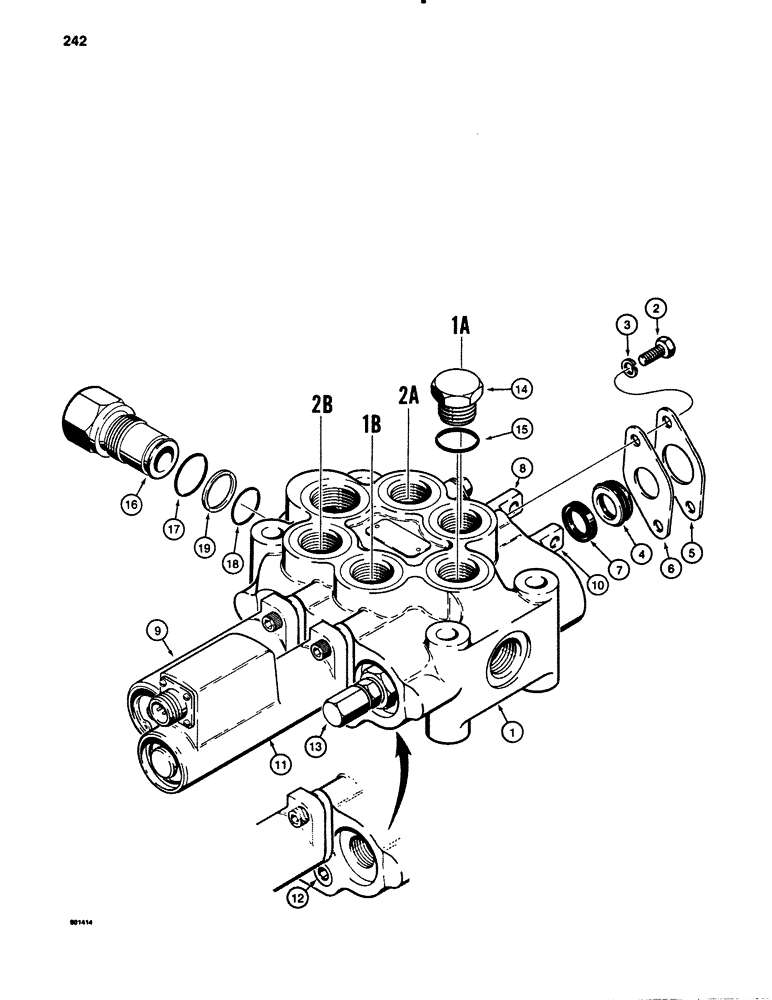

Запчасти Case 780B (242) - L101840 LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L101840

LOCK VALVE

CONTROL VALVE - loader, 2 spool, Hydreco MVT025DY35, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

D82728

RING

WIPER - spool

2шт.

5

D82721

PLATE

- retaining, outer

2шт.

6

D82720

PLATE ASSY.

PLATE - retaining, inner

2шт.

7

D82727

SEAL

- spool

4шт.

8

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list Figure 246

1шт.

9

N8211

DETENT

ASSEMBLY - lift, parts list Figure 248

1шт.

10

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket, parts list Figure 246

1шт.

11

REF

INSTRUCTION

MAGNETIC DETENT ASSEMBLY - bucket, parts list Figure 250

1шт.

12

REF

INSTRUCTION

SECONDARY RELIEF VALVE ASSEMBLY - parts list Figure 252

2шт.

13

REF

INSTRUCTION

MAIN RELIEF VALVE ASSEMBLY - parts list Figure 252

1шт.

14

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex head, 1-1/16" - 12 NC, Includes: Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

16

N6583

FITTING

- special

1шт.

17

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- outer

1шт.

18

D54165

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

- inner

1шт.

19

L32991

RING

BACKUP RING - inner O-ring

1шт.
