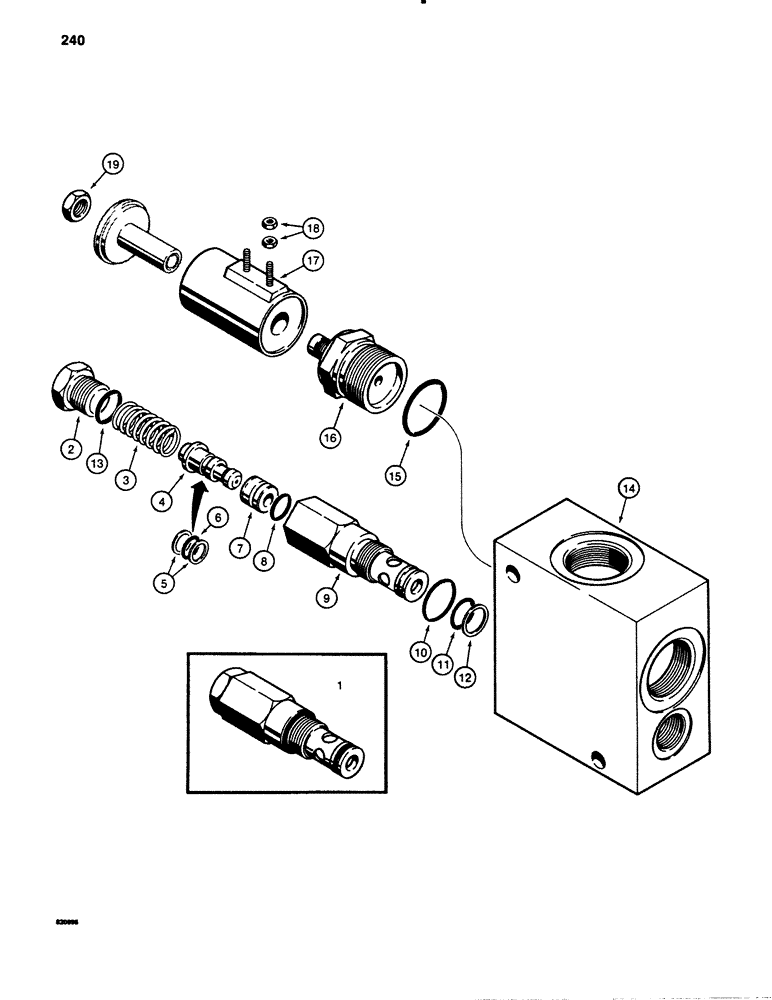

Запчасти Case 780B (240) - L104686 SOLENOID RELIEF (08) - HYDRAULICS

L104686

LOCK VALVE

SOLENOID ASSEMBLY - relief, Includes: Ref. 1 - 19

1шт.

1

N7468

SPOOL

RELIEF - solenoid, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - end, relief

1шт.

3

N7470

VALVE SPRING

SPRING - relief

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - solenoid

1шт.

5

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

BACKUP RING - spool

2шт.

6

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- seal

1шт.

7

N7471

SEAT

- spool

1шт.

8

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- seat

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

11

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- small

1шт.

12

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING - small o-ring

1шт.

13

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- end plug

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

15

L33129

O-RING,1.109" ID x 1.387" OD x 0.139"

- solenoid body

1шт.

16

NSS

NOT SOLD SEPARAT

SOLENOID - relief

1шт.

The illustration is deceiving in that the shaft is long enough to pass all the way through Ref. 17 solenoid coil. Also, the part shown in phantom between Refs. 17 and 19 is not there now.

1шт.

17

N7469

COIL ASSY.

COIL - solenoid

1шт.

18

129-16

NUT,#8-32

4шт.

19

131-813

NUT,3/8"-24

NUT - hex, self-locking, 3/8" - 24 NF

1шт.
