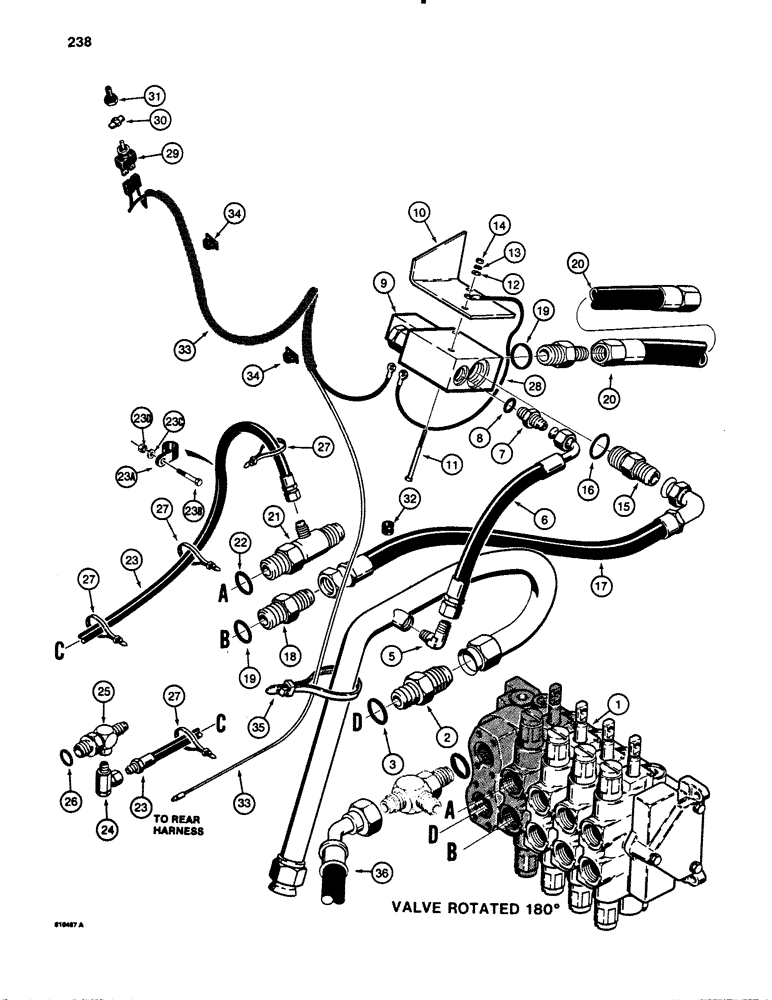

Запчасти Case 780B (238) - BACKHOE BOOM LOCK HYDRAULIC AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 256

1шт.

2

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, backhoe valve return port, Includes: Ref. 3

1шт.

3

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- adapter

1шт.

4

L105519

TUBE ASSY.

TUBE - backhoe control valve return, used on models without extendable dipper

1шт.

4

L106841

TUBE ASSY.

TUBE - backhoe control valve return, used on models with extendable dipper

1шт.

5

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

6

L105422

HOSE

- valve to return, 12" (305 mm) long

1шт.

7

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - straight, Includes: Ref. 8

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.

9

L104686

LOCK VALVE

BOOM LOCK VALVE - solenoid, parts list Figure 240

1шт.

10

L108453

BRACKET

- boom lock valve mounting

1шт.

11

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex head, 5/16" - 18 NC x 3"

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, boom lock tube, Incl. Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

17

L109368

HOSE ASSY.

HOSE - to boom lock valve, 19" (483 mm) long

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, boom lock valve, Incl. Ref. 19

2шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

20

L105514

HOSE ASSY.

HOSE - boom to boom lock, 20" (508 mm) long

1шт.

21

L106793

TEE

- special, backhoe control valve, Includes: Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

23

L107763

HOSE,0.25" ID x 100.00"

- flow control valve to backhoe control valve, boom section

1шт.

23a

T50103

CLAMP

- hose

1шт.

23b

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

23c

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

23d

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

24

L59038

LOCK VALVE

CHECK VALVE - flow control valve

1шт.

25

L106770

TEE

- special, check valve to flow control valve, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

8шт.

28

L16409

ELECTRICAL WIRE

WIRE - ground

1шт.

29

D67251

SWITCH

TOGGLE SWITCH - boom lock

1шт.

30

L105735

PLATE ASSY.

PLATE - trim

1шт.

31

L101998

BOOT

- toggle switch

1шт.

32

L13765

GROMMET

- harness

1шт.

33

L110680

HARNESS

- boom lock

1шт.

34

L100659

CLIP

- harness

2шт.

35

R38237

STRAP

TIE STRAP - wire to backhoe return tube

1шт.

36

L109370

HOSE ASSY.

HOSE - special, from stabilizer valve to backhoe control valves, 39" (991 mm) long

1шт.
