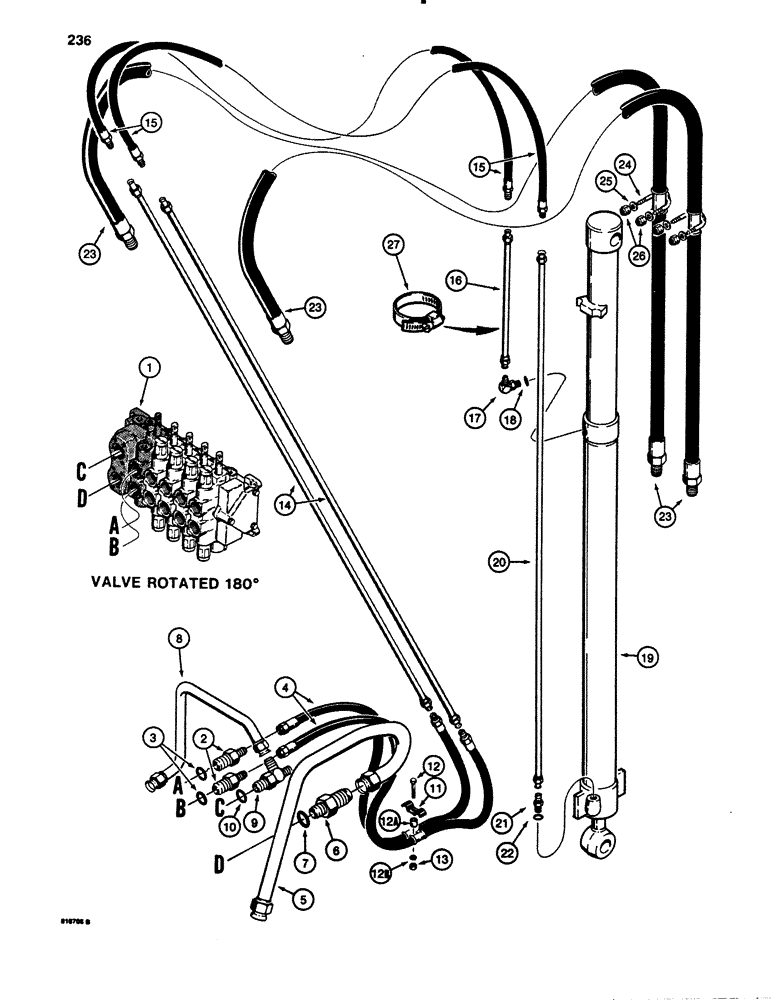

Запчасти Case 780B (236) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, extendable dipper models, parts list Figure 256

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

L103775

HOSE,0.50" ID x 60.00"

Valve to Tubes 0.50" ID x 60.00"

2шт.

5

L106521

TUBE ASSY.,1.5" OD

TUBE - backhoe return, extendable dipper models

1шт.

6

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, male, Includes: Ref. 7

1шт.

7

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- connector

1шт.

8

L106459

TUBE ASSY.,1" OD

TUBE - backhoe supply, extendable dipper models

1шт.

9

218-5586

TEE,37 Degree, 1 1/16"-12, 1 5/8"-12 O-Ring Run, 1 5/16"-12

- fitting, backhoe supply tube, Includes: Ref. 10

1шт.

10

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- tee

1шт.

11

R15257

CLAMP

-, Serial Range: hose-tower

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

12a

D76209

SPACER

- clamp

1шт.

12b

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

14

L103784

TUBE,0.625" OD x 102.5" L

- to extension cylinder

2шт.

15

L103654

HOSE,12.70 mm ID x 1092.20 mm

to Extendable Dipper Cylinder 12.70 mm ID x 1092.20 mm

2шт.

16

L103656

TUBE ASSY.,0.625" OD x 17.8" L

TUBE - from hose to extension cylinder, closed end

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Incl. Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

19

G103108

CYLINDER ASSY.

CYLINDER - extension, parts list Figure 298

1шт.

20

L103658

TUBE ASSY.,0.625" OD x 69.8" L

TUBE - from hose to extension cylinder, rod end

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

23

L109843

HOSE,0.75" ID x 102.00", SAE 100R12

to Bucket Cylinder, Extendable Dipper Models 0.75" ID x 102.00", SAE 100R12

2шт.

24

L104253

U-BOLT

- bucket hose

2шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

26

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

27

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

1шт.
