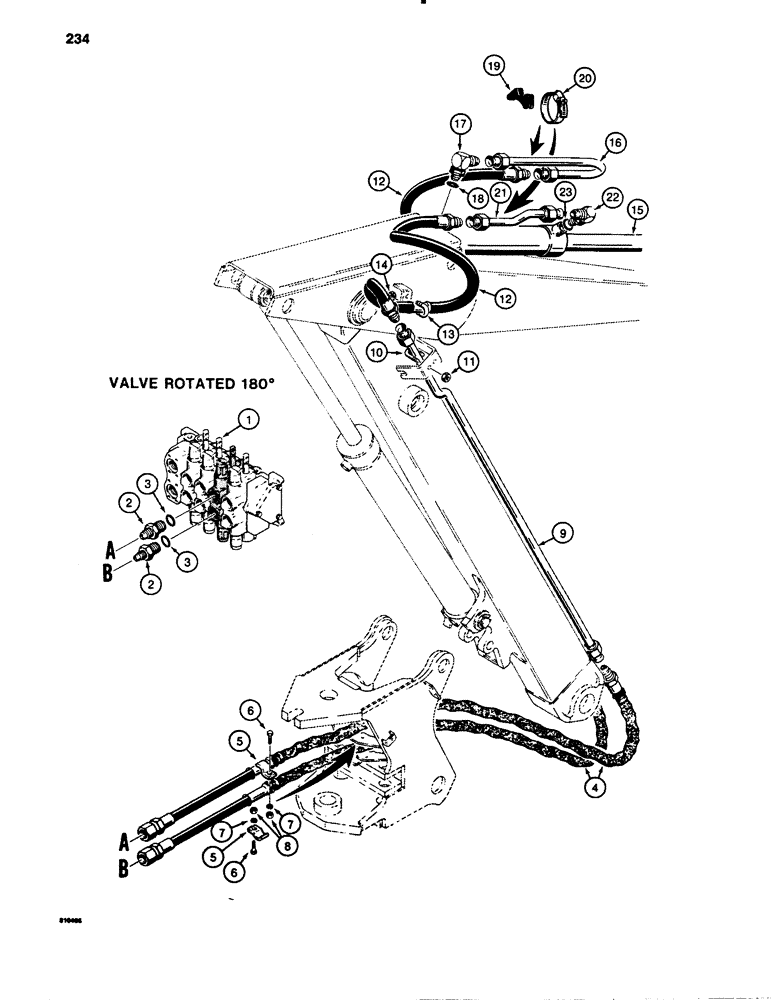

Запчасти Case 780B (234) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 256

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

L103760

HOSE,0.75" ID x 61.00"

Control Valve to Bucket Tube 0.75" ID x 61.00"

2шт.

5

L102375

CLAMP

- hose

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

9

L103795

TUBE,1" OD x 94.1, 4.8" L

- hose to bucket cylinder

2шт.

10

L78947

U-BOLT

- tube clamp

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

12

L103637

HOSE,0.75" ID x 53.00", SAE 100R2AT

2шт.

13

L104253

U-BOLT

- tube clamp

2шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

15

REF

INSTRUCTION

CYLINDER - bucket, parts list Figure 294 or 296

1шт.

16

L103644

TUBE ASSY.,15, 4.47" L

TUBE - bucket cylinder, closed end

1шт.

17

L114092

ELBOW

- 90 degree, special, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

19

L79937

SADDLE

SPACER - tube

2шт.

20

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.

21

L103629

TUBE ASSY.

TUBE - bucket cylinder, rod end

1шт.

22

L114092

ELBOW

- 90 degree, special, Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.
