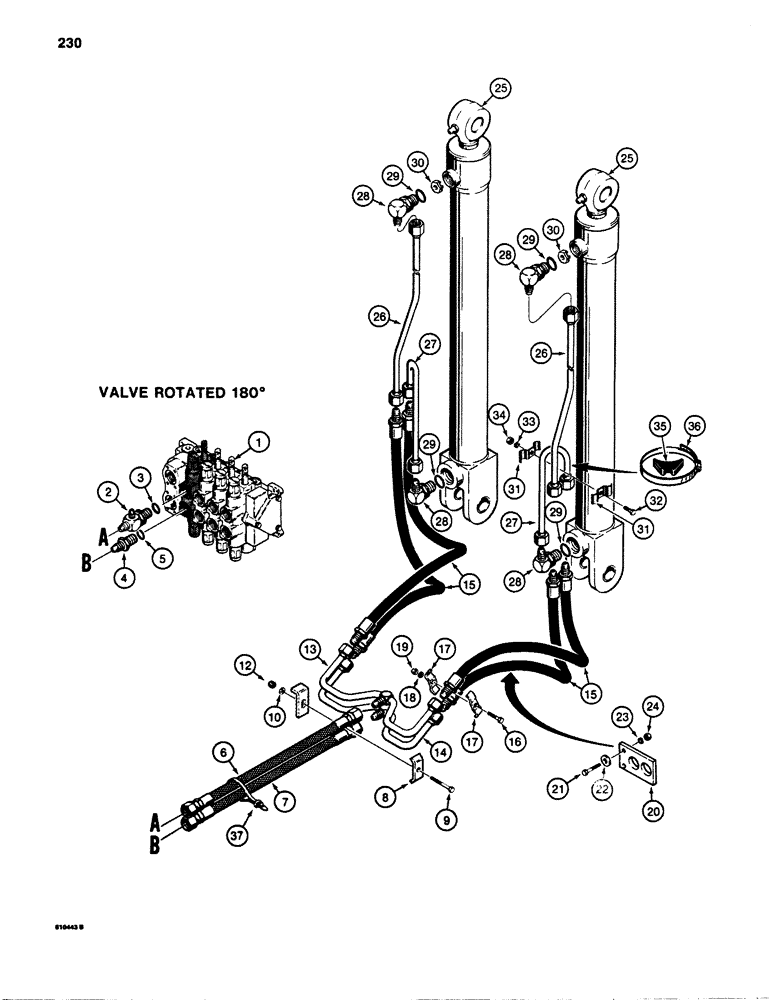

Запчасти Case 780B (230) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 256

1шт.

2

L106793

TEE

- special, backhoe control valve top, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - male, straight, backhoe control valve bottom, Incl. Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

6

L107761

HOSE,0.75" ID x 26.00", SAE 100R2

- control valve to boom manifold, top, closed end of cylinder, 26" (660 mm) long

1шт.

7

L103747

INTAKE AIR HOSE,19.05 mm ID x 711.20 mm

HYDRAULIC HOSE - Control Valve to Boom Manifold, Bottom, Rod end of cylinder 19.05 mm ID x 711.20 mm

1шт.

8

L102643

CLAMP

- hose

1шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

1шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

11

RESERVED

1шт.

12

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

13

L103732

MANIFOLD

- top, to boom cylinder, closed end

1шт.

14

L103733

MANIFOLD

- bottom, to boom cylinder, rod end

1шт.

15

T41487

HYDRAULIC HOSE,0.30" ID x 30.00"

- Manifold to boom cylinder 0.30" ID x 30.00"

4шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

L78057

CLAMP

- hose

4шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

20

L100186

GUIDE

- hose

2шт.

21

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

4шт.

22

D41740

WASHER

- flat, 3/8", special

4шт.

23

92-5

LOCK WASHER,5/16"

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

25

G103044

CYLINDER ASSY.

CYLINDER - boom, parts list Figure 290

2шт.

26

L103632

TUBE ASSY.,38, 2.2" L

TUBE - boom cylinder, rod end

2шт.

27

L101013

TUBE,0.75" OD x 15.2, 3" L

- boom cylinder, closed end

2шт.

28

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 29

4шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

30

L108606

RESTRICTOR

- boom drop

2шт.

31

R15257

CLAMP

- tube

4шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

35

D38648

BLOCK

SPACER - rubber, tube clamp

2шт.

36

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tubes to boom cylinder

2шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
