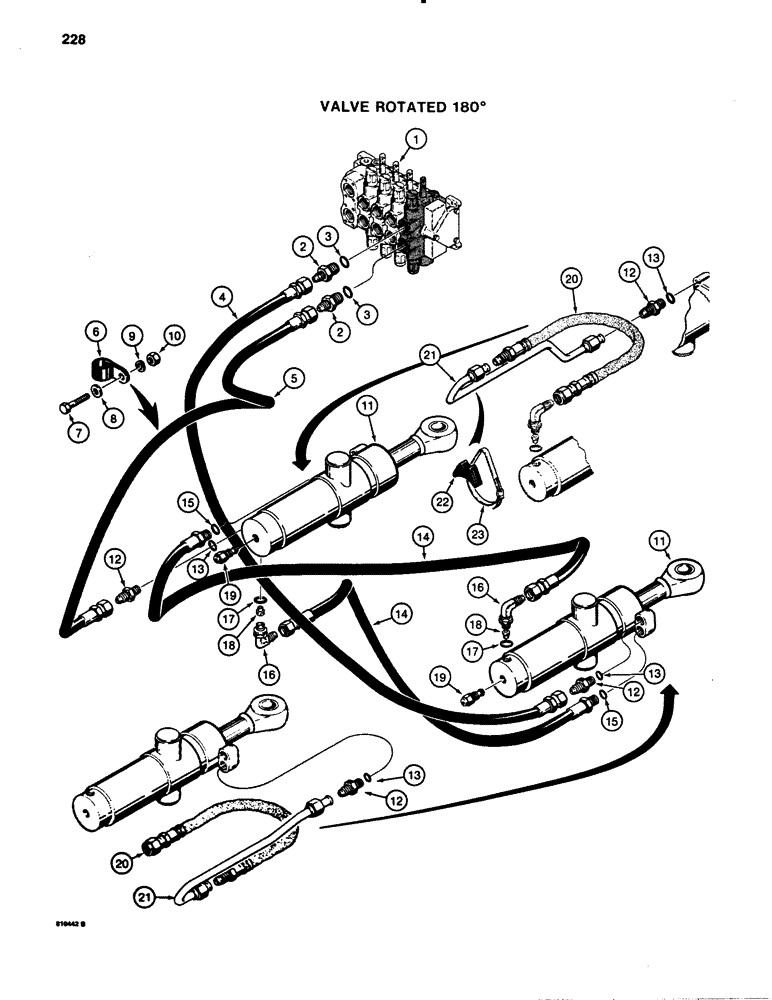

Запчасти Case 780B (228) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 256

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

4

L103713

HOSE

- right-hand, backhoe control valve to rod end of right-hand swing cylinder, 58" (1473 mm) long

1шт.

5

L106335

HOSE

- left-hand, backhoe control valve to rod end of left-hand swing cylinder, 61" (1549 mm) long

1шт.

6

R43738

CLAMP

- swing cylinder hose left-hand, clamp to control valve, if used

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

95-6

WASHER,3/8"

- flat, , if used 3/8"

1шт.

9

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.

11

G103072

CYLINDER

- swing, parts list Figure 286

2шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, Incl. Ref 13

2-4шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

14

L106861

HOSE - crossover, 25" (635 mm) long, used before tractor SN 9146272 and on tractor SN 9146276, Includes: Ref. 15

2шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- crossover hose

1шт.

16

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

L108874

RESTRICTOR

- check, swing cylinder, used on models without extendable dipper

2шт.

18

L103569

RESTRICTOR

- check, swing cylinder, used on models with extendable dipper

2шт.

19

L78723

LOCK VALVE

RELIEF VALVE - swing cylinder, parts list Figure 288

2шт.

20

L109270

HOSE

- crossover, 22" (559 mm) long, used on tractor SN 9146272 and after, except not used on tractor SN 9146276

2шт.

21

L109247

TUBE ASSY.

TUBE - swing cylinder, used on tractor SN 9146272 and after, except not used on tractor SN 9146276

2шт.

22

D38648

BLOCK

SUPPORT - tube, use with L109247 tube

2шт.

23

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - tube to cylinder, use with L109247 tube

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - hoses, 15 inch, if used, not shown

1шт.
