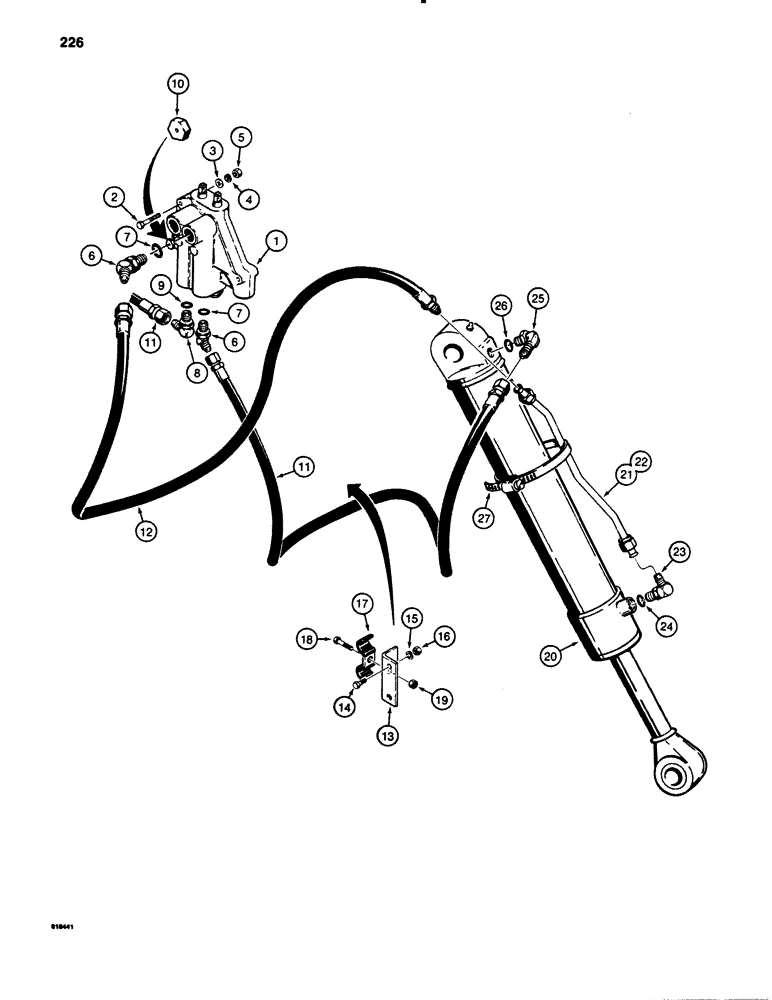

Запчасти Case 780B (226) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - stabilizer, parts list Figure 254

1шт.

2

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

6

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Includes: Ref. 7

3шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

D61933

RESTRICTOR

- upper control valve port

2шт.

11

L105243

HOSE ASSY.

HOSE - stabilizer control valve to stabilizer cylinder, closed end, 68" (1727 mm) long

2шт.

12

L107083

HOSE,0.50" ID x 58.00", SAE 100R2 A

- stabilizer control valve to stabilizer cylinder, rod end, 58" (1473 mm) long

2шт.

13

L103773

ANGLE

BRACKET - hose clamp

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

17

R15257

CLAMP

- hose

2шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, 3/8" self-locking, 3/8" - 16 NC

2шт.

20

G103057

CYLINDER ASSY.

CYLINDER - stabilizer, parts list Figure 284

2шт.

21

L103803

TUBE ASSY.,0.625" OD

TUBE - stabilizer cylinder, left-hand

1шт.

22

L103805

TUBE ASSY.,0.625" OD

TUBE - stabilizer cylinder, right-hand

1шт.

23

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 24

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

25

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 26

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

27

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube to cylinder

2шт.
